OB104M-06 | Bronze Centrifugal Pump | (104M)
SKU: ob104m-06
SKU: ob104m-06
Key Features:
- Material: Bronze housing, stainless steel shaft (Monel optional)
- Port Size: Inlet 3/4" NPT, Outlet 1/2" NPT
- Seal Type: Mechanical seal (carbon/ceramic with NBR); FKM and PTFE optional
- Max Pressure: Up to 22.5 PSI
- Max Head: 52 feet
- Max Flow Rate: 24 GPM
- Max Speed: 3450 RPM
- Temperature Limit: Up to 212°F (with NBR seal)
- Mounting: Close-coupled to NEMA 56J jet pump motors
- Suction Lift: Up to 15 feet (with foot valve and priming)
- Motor Options: Single or three-phase, ODP or TEFC enclosures
- Applications: Marine HVAC, water circulation, light chemical transfer
Lead times temporarily extended to 12 weeks.
$867.00

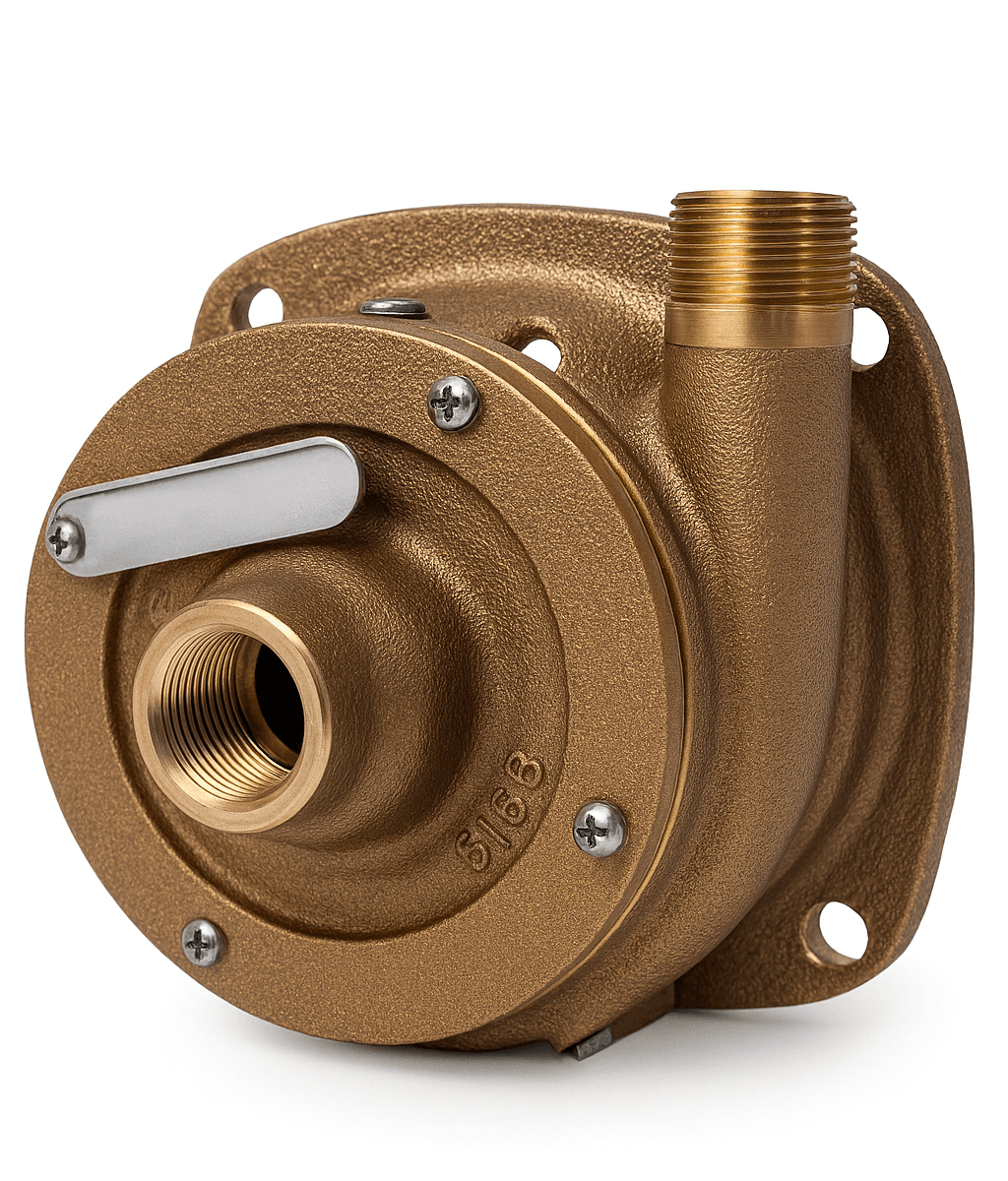

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OB104M-06 is a bronze close-coupled centrifugal pump designed for quiet, efficient fluid transfer in marine, HVAC, and light industrial applications. Featuring a 3/4" NPT inlet and 1/2" NPT outlet, this pump is built for durability and corrosion resistance in demanding environments.
This model is a standard in the marine air conditioning industry, offering smooth operation and flexible discharge port orientation. It includes a carbon/ceramic mechanical seal with NBR elastomer, with optional FKM or PTFE seals available for handling aggressive chemicals and elevated temperatures.
Recommended Applications:
Ideal for marine air conditioning systems, water transfer, and light chemical handling where compact design, corrosion resistance, and quiet operation are essential. Suitable for clean or mildly contaminated liquids; not self-priming—requires flooded suction or priming setup.
This model is a standard in the marine air conditioning industry, offering smooth operation and flexible discharge port orientation. It includes a carbon/ceramic mechanical seal with NBR elastomer, with optional FKM or PTFE seals available for handling aggressive chemicals and elevated temperatures.
Recommended Applications:
Ideal for marine air conditioning systems, water transfer, and light chemical handling where compact design, corrosion resistance, and quiet operation are essential. Suitable for clean or mildly contaminated liquids; not self-priming—requires flooded suction or priming setup.
