OB104M-06F13 | Bronze Centrifugal Pump and Motor Unit | (104M)
OB104M-06F13 | Bronze Centrifugal Pump and Motor Unit | (104M)
Art. No.: ob_ob104m-06f13
Art. No.: ob_ob104m-06f13
Key Features:
Material: Bronze housing, stainless steel shaft
Port Size: 3/4" NPT inlet, 1/2" NPT outlet
Seal Type: Carbon/ceramic mechanical seal with Buna elastomer
Motor: 1/3 HP, 115V, ODP, single-phase
Max Speed: 3450 RPM
Max Temperature: 212°F (Buna), higher with optional Viton or PTFE seals
Mounting: NEMA 56J Jet Pump Motor
Suction Lift: Up to 15 feet with foot valve
Noise Level: Extremely quiet operation
Weight: Approx. 6 lbs
Lead times temporarily extended to 16 weeks.
$1,535.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

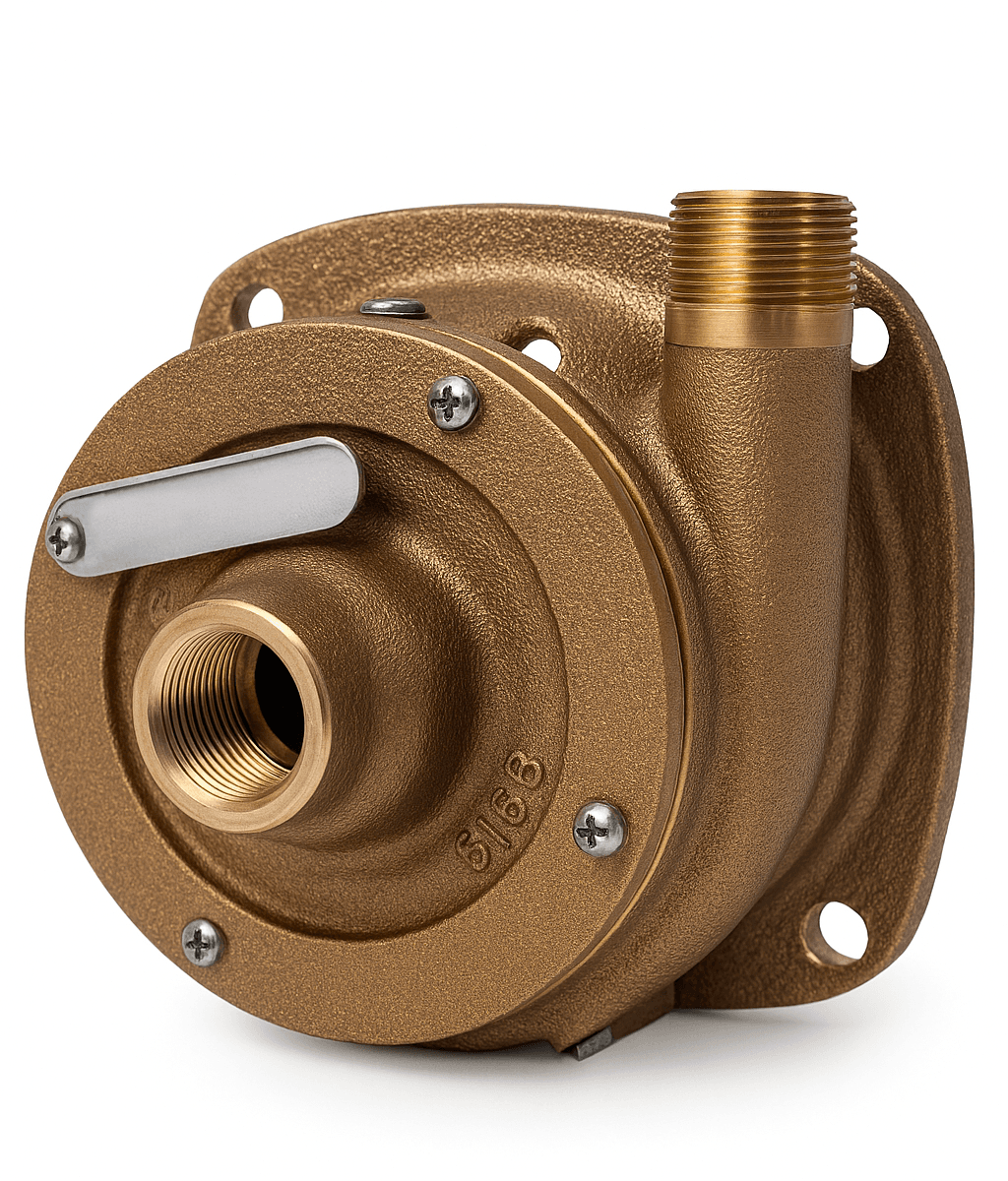

The OB104M-06F13 is a bronze close-coupled centrifugal pump and motor unit designed for marine and industrial fluid transfer applications. Featuring a 1/3 HP, 115V ODP motor and a rugged bronze pump head, this unit delivers reliable, quiet performance with excellent corrosion resistance. It includes a carbon/ceramic mechanical seal with Buna (NBR) elastomer and a Teflon barrier seal to protect motor bearings.
With 3/4" NPT inlet and 1/2" NPT outlet, the pump is ideal for water, oils, and mild chemicals. It supports suction lifts up to 15 feet (with foot valve) and is commonly used in marine air conditioning systems and other compact installations.
Recommended Applications:
Ideal for marine air conditioning, water circulation, and light chemical transfer systems requiring compact, corrosion-resistant, and dependable centrifugal performance.
