OB107MB-F25 | Bronze Centrifugal Seawater Pump and motor unit | (107MB)

Art. No.: ob_ob107mb-f25

Key Features:

Material: Bronze housing, stainless steel shaft
Port Size: 1¼" NPT inlet, 1" NPT outlet
Seal Type: Carbon-ceramic mechanical seal with Buna elastomer
Motor: 1/3 HP, 3450 RPM, 230V, single-phase, TEFC
Max Flow: 35 GPM
Max Head: 50 feet
Temperature Range: 40°F to 140°F
Mounting: NEMA 56J C-Flange motor with rigid base
Suction Lift: Up to 15 feet with foot valve
Includes: 7' power cord, thermal overload protection, vent valve

Lead times temporarily extended to 36 weeks.

$1,619.11

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Request a Quote

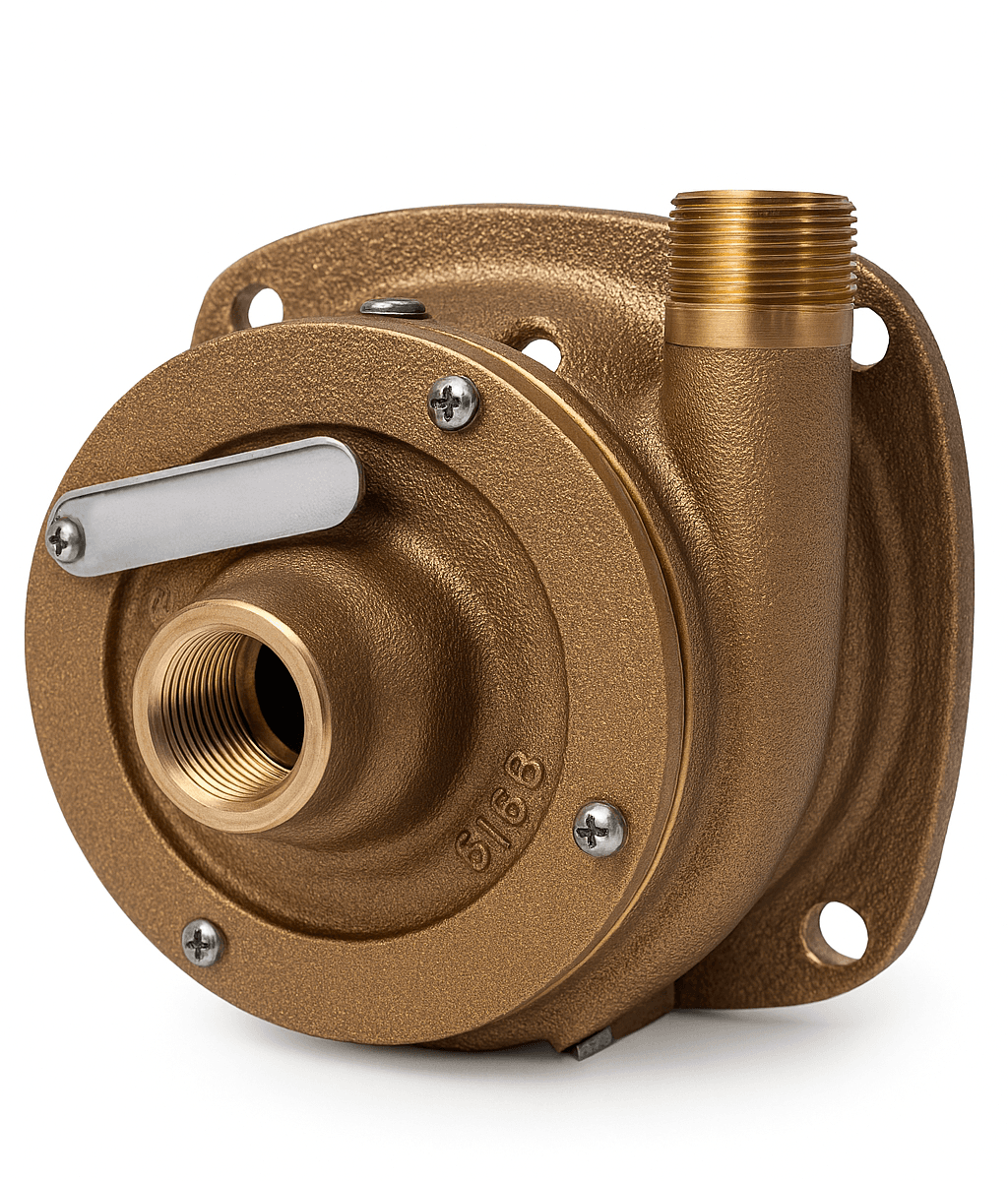

The OB107MB-F25 is a bronze close-coupled centrifugal pump and motor unit engineered for seawater and freshwater circulation in marine and industrial systems. Featuring a 1/3 HP, 3450 RPM, 230V single-phase TEFC motor, this pump delivers up to 35 GPM with quiet, efficient operation. It includes a precision-machined bronze impeller, carbon-ceramic mechanical seal with Buna elastomer, and a corrosion-resistant bronze housing.

Designed as a drop-in replacement for models 67, 67-3, P120Z, and P700Z, the 107MB-F25 is ideal for marine air conditioning and seawater transfer applications. The pump is not self-priming and should be installed below the liquid level or used with a foot valve for suction lifts up to 15 feet.

Recommended Applications:
Ideal for seawater circulation, marine HVAC systems, and freshwater transfer in environments requiring corrosion resistance, quiet operation, and compact design.
