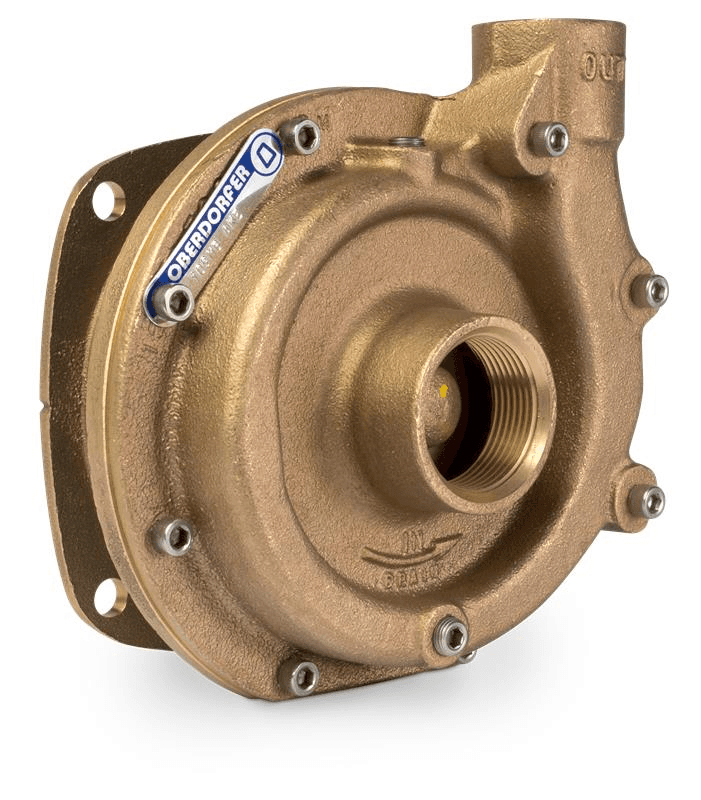

OB109MB-01J26 | Bronze Centrifugal Pump and Motor 1/2 HP, Buna Mech. Seal | (109MB)
SKU: ob109mb-01j26
SKU: ob109mb-01j26
Key Features:
- Material: Bronze housing, Monel shaft
- Port Size: Inlet 1 1/4" NPT, Outlet 1" NPT
- Seal Type: Mechanical seal (carbon/ceramic with Buna-N); FKM and PTFE options available
- Motor: 1/2 HP, 115/230V, single-phase, ODP enclosure
- Max Pressure: 75 PSI
- Max Temperature: 212°F
- Mounting: Close-coupled to NEMA 56J jet pump motor
- Suction Lift: Up to 15 feet (with foot valve and priming)
- Flow Rate: Up to 10.56 GPM at 1725 RPM
- Drive Options: Direct motor coupling
Lead times temporarily extended to 12 weeks.
$2,320.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OB109MB-01J26 is a bronze close-coupled centrifugal pump and motor assembly designed for quiet, efficient fluid transfer in marine, HVAC, and light industrial applications. Featuring a 1 1/4" NPT inlet and 1" NPT outlet, this unit includes a 1/2 HP open drip-proof (ODP) motor and a Buna (NBR) mechanical seal for reliable performance.
This model is a standard in the marine air conditioning industry, offering smooth operation and flexible discharge port orientation. It includes a carbon/ceramic mechanical seal with Buna elastomer, and a Monel shaft for enhanced corrosion resistance in demanding environments.
Recommended Applications:
Ideal for marine HVAC systems, water circulation, and light chemical handling where compact design, corrosion resistance, and quiet operation are essential. Suitable for clean or mildly contaminated liquids; not self-priming—requires flooded suction or priming setup.
This model is a standard in the marine air conditioning industry, offering smooth operation and flexible discharge port orientation. It includes a carbon/ceramic mechanical seal with Buna elastomer, and a Monel shaft for enhanced corrosion resistance in demanding environments.
Recommended Applications:
Ideal for marine HVAC systems, water circulation, and light chemical handling where compact design, corrosion resistance, and quiet operation are essential. Suitable for clean or mildly contaminated liquids; not self-priming—requires flooded suction or priming setup.
