OB302M-03 | Bronze Engine Cooling Pump | (302M)

Art. No.: ob_ob302m-03

product image Oberdorfer Authorized OB302M-03 Flexible Impeller Pump

Art. No.: ob_ob302m-03

Key Features:

Material: Bronze housing, stainless steel shaft
Port Size: 3/8" or 1/2" NPT (varies by model)
Drive: Slotted shaft
Impeller: Neoprene (replaceable)
Max Suction Lift: 20 feet (primed)
Temperature Range: 40°F to 140°F
Mounting: Flange-mounted
Seal: Dual seal system for pump and flange

Lead times temporarily extended to 16 weeks.

$1,084.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.

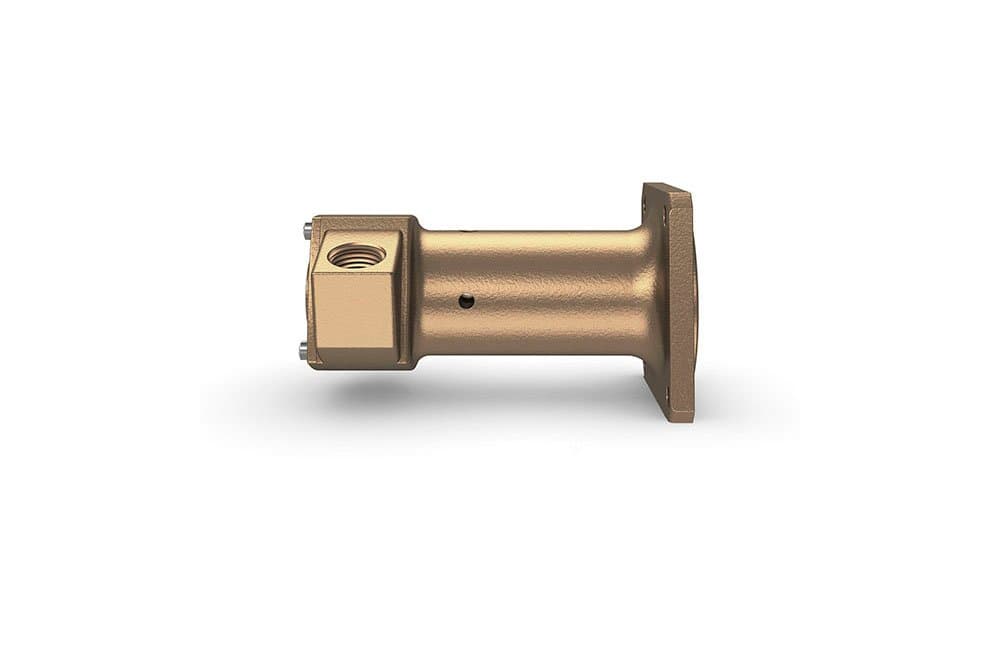

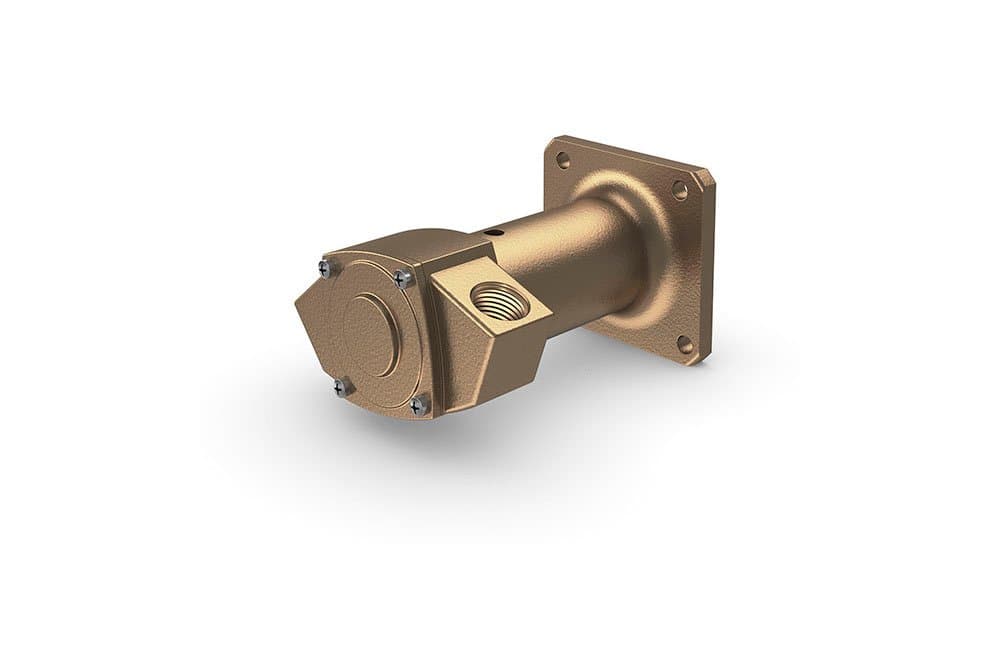

The OB302M-03 is a compact, flange-mounted bronze engine cooling pump designed for marine and industrial engine applications. Built with corrosion-resistant bronze castings, a stainless steel shaft, and self-lubricating carbon bearings, it delivers reliable performance in harsh environments. This model features a slotted shaft drive and is equipped with a neoprene impeller for efficient water transfer.

The pump is self-priming up to 20 feet and handles fresh or salt water, as well as mild chemicals. It is not suitable for gasoline or abrasive fluids. The OB302M-03 is ideal for direct engine mounting and includes a drain plug for easy maintenance.

Recommended Applications:
Ideal for marine engine cooling, bilge pumping, and light-duty fluid transfer in OEM and industrial systems.

Recommended Parts

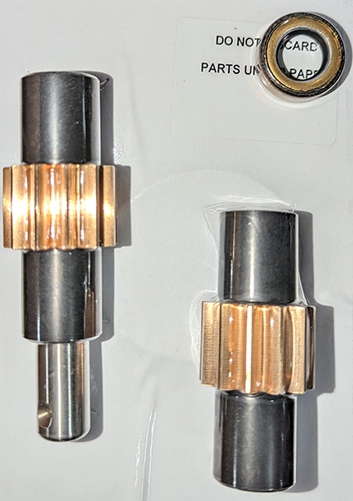

Repair Kit 302M-03 | (OB12137)
