Seal Type: Mechanical (NBR standard, FKM/PTFE optional)
Max Pressure: 75 PSI
Max Temperature: 212°F (NBR)
Mounting: NEMA 56J Jet Pump Motor compatible
Applications: Water, oils, mild solvents
Lead times temporarily extended to 16 weeks.
$608.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

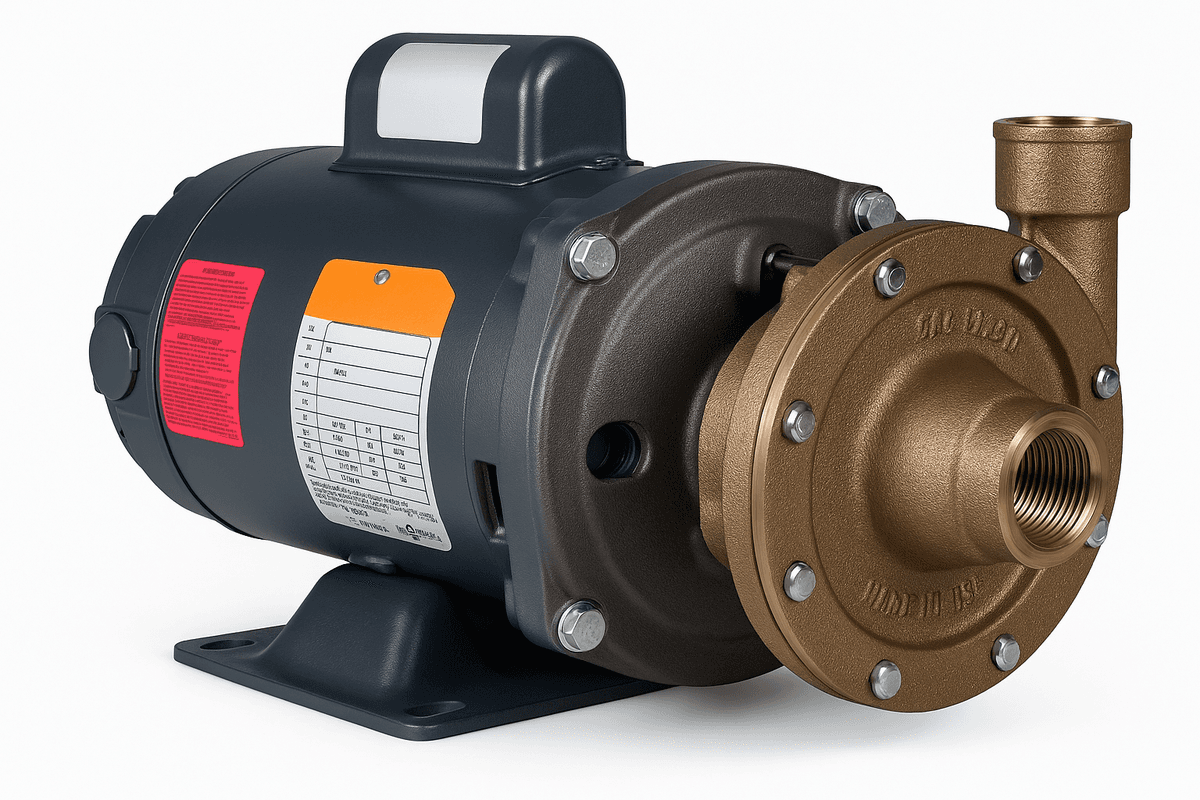

The OB600P is a close-coupled bronze centrifugal pump designed for quiet, efficient fluid transfer in marine, HVAC, and industrial systems. Featuring 3/4" NPT inlet and 1/2" NPT outlet ports, it delivers reliable performance with a mechanical seal and a stainless steel shaft. The pump is constructed with corrosion-resistant bronze and includes an O-ring housing seal to eliminate gasket issues.
This model is not self-priming and must be installed below the liquid level or used with a foot valve for suction lifts up to 15 feet. It handles water, oils, and mild chemicals, with optional FKM or PTFE seals available for more aggressive fluids.
Recommended Applications:
Ideal for marine air conditioning, water circulation, and general-purpose fluid transfer in compact OEM and industrial systems.
