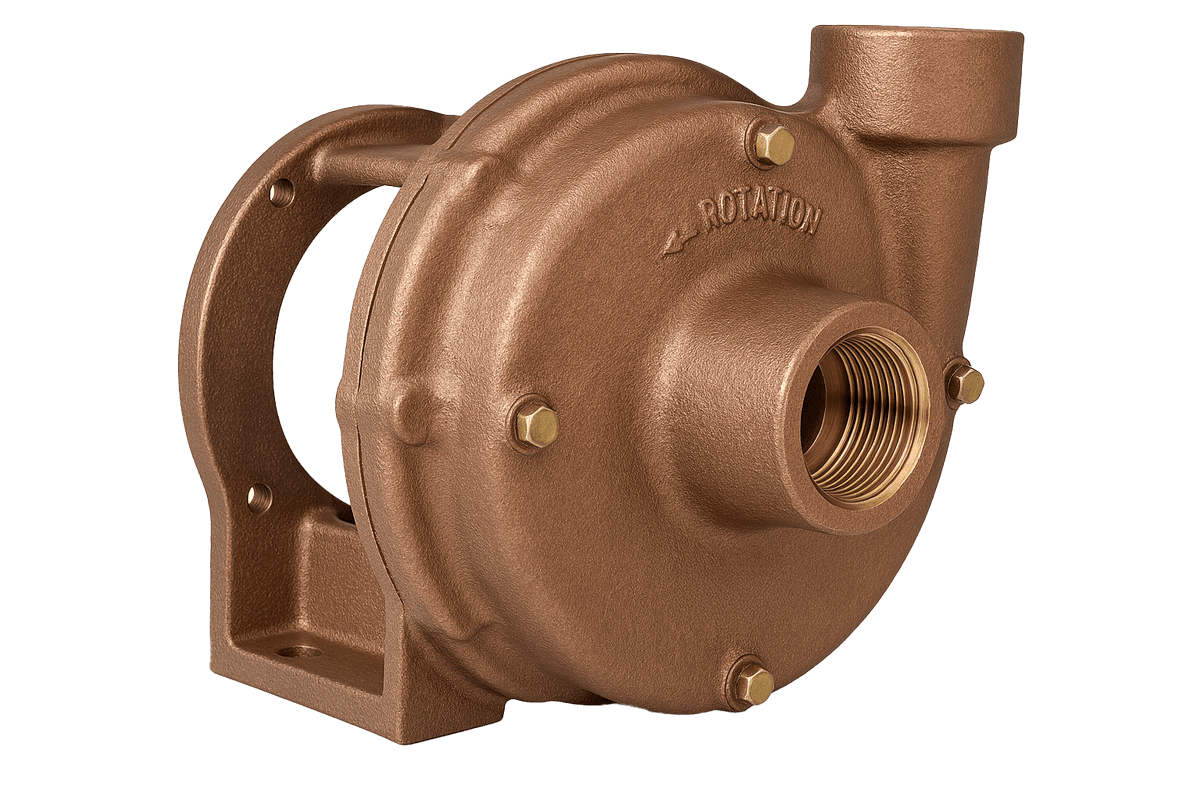

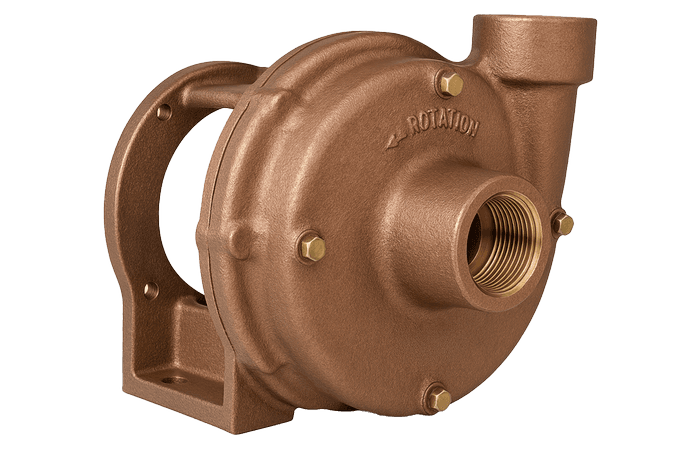

OB830B-Y64 | Centrifugal Pump and Motor Assembly | (830B)
SKU: ob830b-y64
SKU: ob830b-y64
Key Features:
- Material: Bronze housing, stainless steel shaft
- Port Size: 1½" NPT inlet, 1¼" NPT outlet
- Seal Type: Buna mechanical seal (standard), Viton® or Teflon® optional
- Motor: 3 HP, 3450 RPM, 220/440V, 3-phase, TEFC
- Max Temperature: 212°F (Buna), higher with Viton®/Teflon®
- Mounting: Close-coupled to NEMA 56C flange motor
- Suction Lift: Up to 15 feet with foot valve
- Impeller: Bronze, field-replaceable
- Noise Level: Extremely quiet operation
Lead times temporarily extended to 12 weeks.
$4,130.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OB830B-Y64 is a bronze close-coupled centrifugal pump and motor assembly designed for high-performance fluid transfer in industrial and marine environments. Featuring a 3 HP, 3450 RPM, 220/440V three-phase TEFC motor, this unit delivers powerful and quiet operation. It includes a stainless steel shaft, carbon face mechanical seal (Buna standard), and is compatible with Viton® or Teflon® seals for handling aggressive solvents.
With 1½" NPT inlet and 1¼" NPT outlet, the pump is ideal for transferring water, oils, and mild chemicals. It is capable of handling contaminated liquids and viscous fluids up to 2000 SSU. The pump is not self-priming and should be installed below the liquid level or used with a foot valve for suction lift up to 15 feet.
Recommended Applications:
Ideal for water circulation, chemical transfer, marine systems, and industrial processes requiring corrosion resistance, high flow, and reliable performance.
