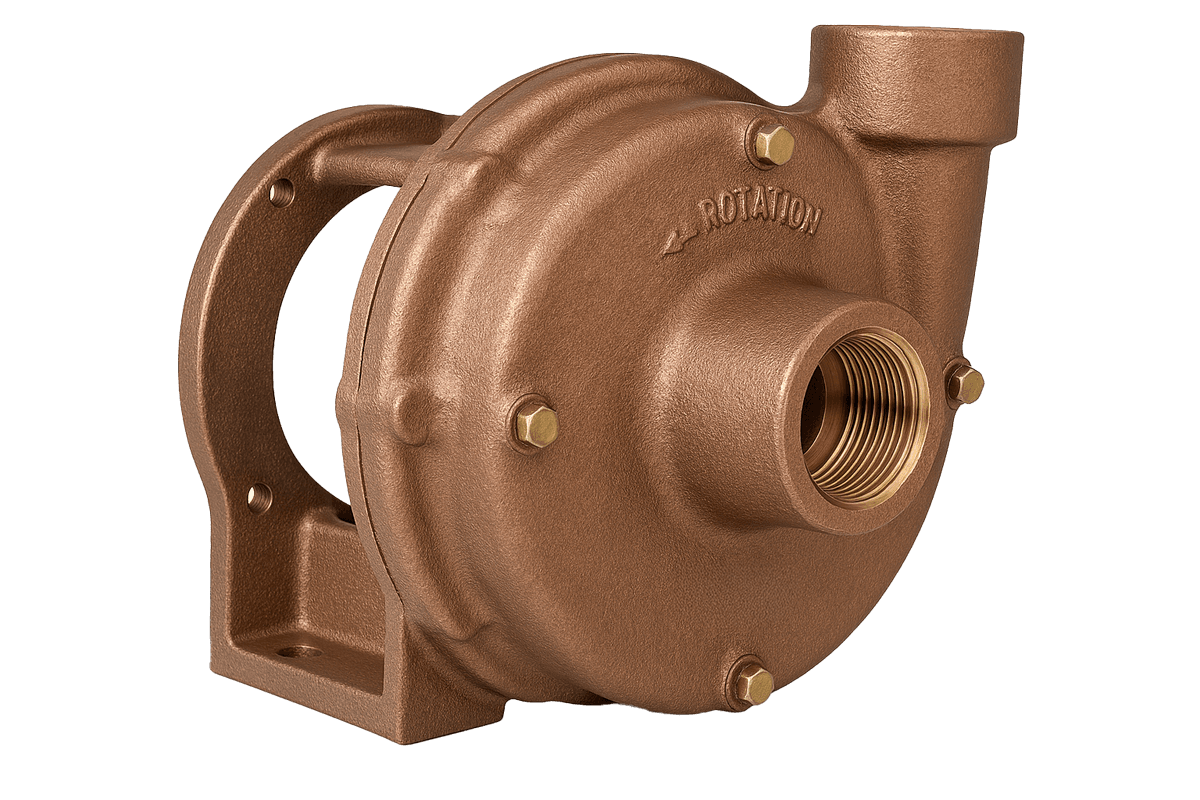

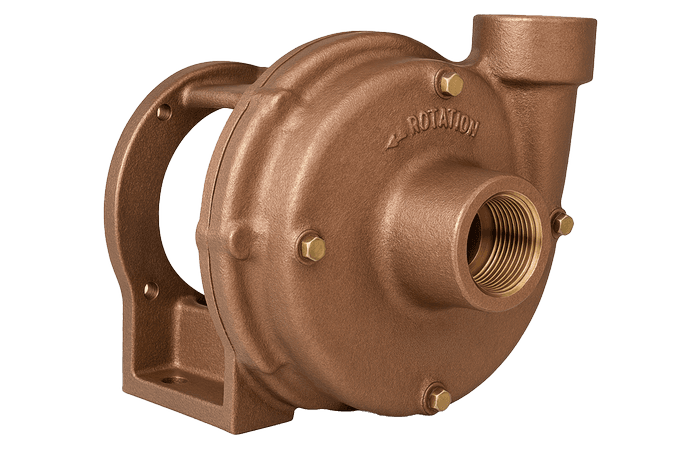

OB83PB | Bronze Centrifugal Pump, Pedestal Mount, Mech Seal | (83PB)
SKU: ob83pb
SKU: ob83pb
Key Features:
- Material: All-bronze construction with stainless steel shaft
- Port Size: 1 1/2" inlet, 1 1/4" outlet
- Seal Type: Mechanical face seal (Viton® or Teflon® optional)
- Mounting: Pedestal mount; convertible to close-coupled
- Bearings: Heavy-duty ball bearings for pulley drive
- Rotation: Clockwise (standard); must match impeller design
- Temperature Limit: Up to 212°F (higher with Viton®/Teflon® seals)
- Suction Lift: Requires flooded suction; not self-priming
- Viscosity Limit: Not recommended for viscous fluids (e.g., SAE 30 oil)
- Recommended Fluids: Water and compatible liquids (pH 4–11)
Lead times temporarily extended to 12 weeks.
$3,320.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OB83PB is a heavy-duty bronze centrifugal pump designed for pedestal mounting in marine, industrial, and general fluid transfer applications. Built with a mechanical face seal and stainless steel shaft, this pump delivers reliable performance and corrosion resistance in demanding environments.
Engineered for pulley drive systems, the 83PB features heavy-duty ball bearings and a robust bronze body. It supports both horizontal and vertical shaft orientations and can be field-converted to a close-coupled configuration using a standard keyed shaft “C” flange motor.
Recommended Applications:
Ideal for marine cooling, bilge, and general water transfer systems where corrosion resistance and mechanical reliability are essential. Suitable for clean, low-viscosity fluids in industrial and OEM systems.
