OBN1000L-03 | Bronze Pedestal Gear Pump, Pack No Brg No Grease Fittings | (N1000)

Art. No.: ob_obn1000l-03

Key Features:

Material: Bronze housing, stainless steel shaft
Port Size: 1/4" NPT
Seal Type: Compression packing (standard); lip seals optional
Max Pressure: 100 PSI (recommended for continuous duty)
Max Speed: 1750 RPM (lower speeds recommended for viscous or abrasive fluids)
Temperature Range: -40°F to 400°F (seal dependent)
Bearings: Bronze bearing surfaces (no carbon bearings)
Mounting: Pedestal base for direct or belt drive
Suction Lift: Up to 20 feet
Drive Options: Direct drive preferred; belt drive possible with additional support

Lead times temporarily extended to 32 weeks.

$426.23

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Request a Quote

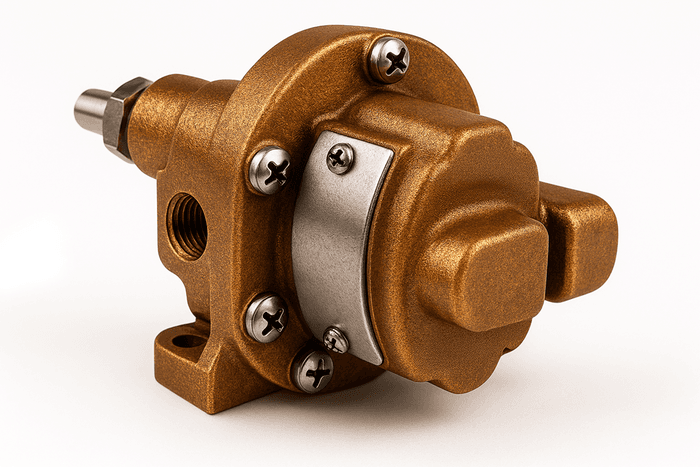

The OBN1000L-03 is a bronze pedestal-mounted rotary gear pump designed for reliable fluid transfer in industrial and marine applications. Featuring 1/4" NPT ports and a traditional compression packing seal, this positive displacement pump delivers consistent flow and pressure with excellent corrosion resistance.

Built with bronze castings and stainless steel shafts, the OBN1000L-03 is engineered for durability and chemical compatibility. It is ideal for clean, lubricating fluids and supports suction lifts up to 20 feet. This model is designed without carbon bearings or grease fittings, simplifying maintenance and reducing wear points.

Recommended Applications:
Ideal for transferring oils, lubricants, and compatible chemicals in marine, industrial, and OEM systems requiring compact, corrosion-resistant, and pressure-stable performance. Not recommended for abrasive or solid-laden fluids.

Recommended Parts

Repair Kit N1000 | (OB12295)
