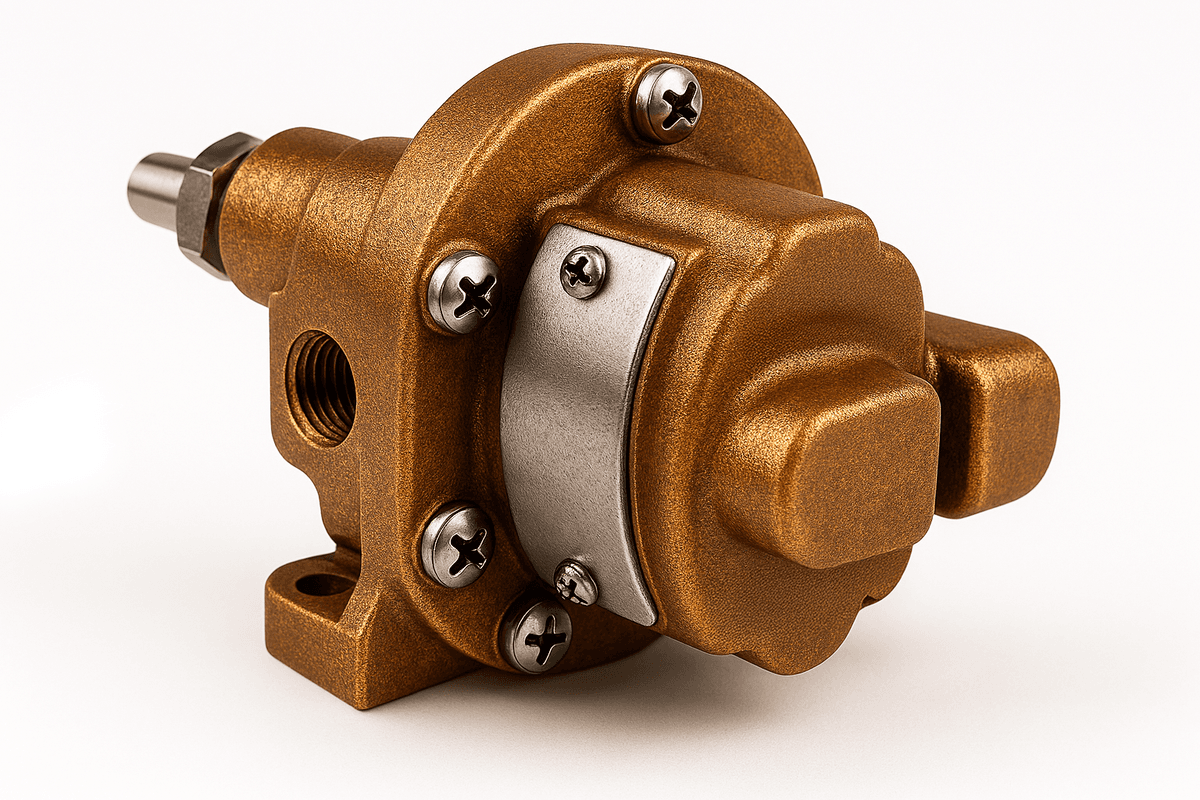

OBN1000S3 | Bronze Pedestal Gear Pump, Buna Lip Seal | (N1000)
SKU: obn1000s3
SKU: obn1000s3
Key Features:
- Material: Bronze housing, stainless steel shaft
- Port Size: 1/4" NPT
- Seal Type: Buna (NBR) lip seal (standard); FKM, PTFE, and mechanical seals optional
- Max Pressure: 150 PSI (lubricants), 100 PSI (non-lubricants)
- Max Speed: 1750 RPM
- Temperature Range: Up to 212°F with NBR seal (higher with optional seals)
- Bearings: Carbon graphite, self-lubricating
- Mounting: Pedestal base for direct or belt drive
- Suction Lift: Up to 20 feet
- Drive Options: Flexible coupling or pulley; external bearing support recommended for belt drive
Lead times temporarily extended to 12 weeks.
$455.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBN1000S3 is a bronze pedestal-mounted rotary gear pump designed for reliable fluid transfer in industrial, marine, and OEM applications. Featuring 1/4" NPT ports and a Buna (NBR) lip seal, this positive displacement pump ensures consistent flow and pressure with excellent corrosion resistance.
Constructed with bronze castings, stainless steel shafts, and self-lubricating carbon bearings, the OBN1000S3 is ideal for clean, lubricating fluids. Its pedestal design supports both direct and belt drive configurations, and it is capable of self-priming with suction lifts up to 20 feet.
Recommended Applications:
Ideal for transferring oils, lubricants, and compatible chemicals in marine, industrial, and OEM systems requiring compact, corrosion-resistant, and pressure-stable performance. Not suitable for abrasive or solid-laden fluids.
Constructed with bronze castings, stainless steel shafts, and self-lubricating carbon bearings, the OBN1000S3 is ideal for clean, lubricating fluids. Its pedestal design supports both direct and belt drive configurations, and it is capable of self-priming with suction lifts up to 20 feet.
