OBN11HDL | Bronze Pedestal Gear Pump, Viton/Teflon | (N11HDL)
SKU: obn11hdl
SKU: obn11hdl
Key Features:
- Material: Bronze housing, stainless steel shaft
- Port Size: 1 1/4" NPT
- Seal Type: Viton/PTFE lip seal (standard); mechanical and packing seals optional
- Max Pressure: Recommended below 100 PSI for continuous duty
- Max Speed: 900 RPM (continuous); higher speeds for intermittent use
- Temperature Range: Dependent on seal type; Viton/PTFE suitable for elevated temperatures and aggressive fluids
- Bearings: Carbon graphite, self-lubricating
- Mounting: Pedestal base for flexible drive options
- Suction Lift: Capable of self-priming up to 20 feet
- Drive Options: Compatible with electric clutches (12V, 24V, 32V) and belt drives
Lead times temporarily extended to 12 weeks.
$2,843.00

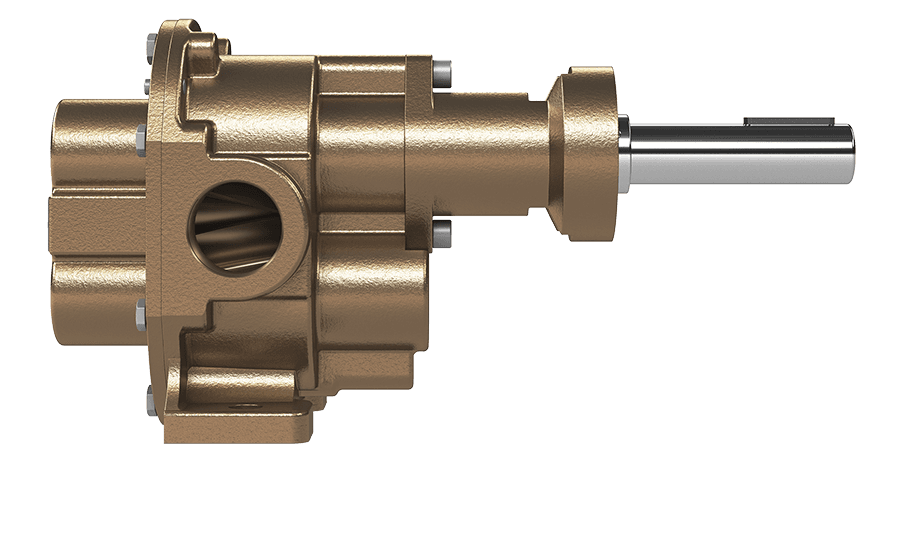

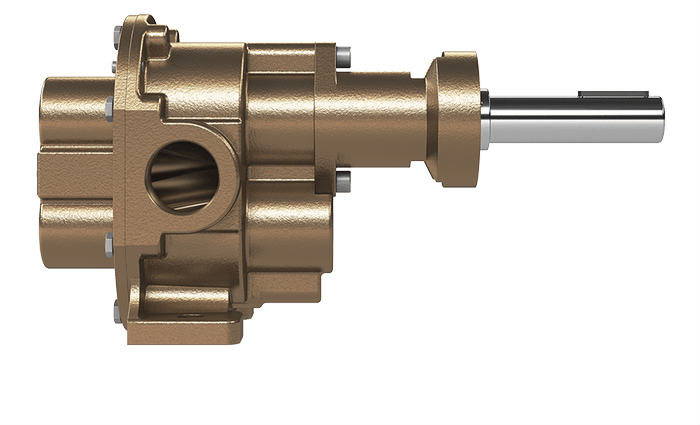

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBN11HDL is a bronze pedestal-mounted rotary gear pump engineered for high-performance fluid transfer in industrial and marine applications. Featuring 1 1/4" NPT ports and a Viton/PTFE lip seal, this positive displacement pump offers excellent chemical resistance and long service life.
Designed with all-bronze castings, stainless steel shafts, and self-lubricating carbon bearings, the OBN11HDL is ideal for handling a wide range of lubricating and non-lubricating fluids. Its robust construction supports demanding duty cycles, while the pedestal mount allows for flexible drive configurations, including direct or belt drive.
Recommended Applications:
Ideal for transferring oils, solvents, and compatible chemicals in marine, industrial, and OEM systems requiring robust, corrosion-resistant, and seal-flexible performance. Suitable for systems where chemical compatibility and temperature resistance are critical.
Designed with all-bronze castings, stainless steel shafts, and self-lubricating carbon bearings, the OBN11HDL is ideal for handling a wide range of lubricating and non-lubricating fluids. Its robust construction supports demanding duty cycles, while the pedestal mount allows for flexible drive configurations, including direct or belt drive.
