OBN11HDM-06 | Bronze Pedestal Gear Pump | (N11HDM)

Art. No.: ob_obn11hdm-06

Key Features:

Material: Bronze housing, stainless steel shaft
Port Size: 1¼" NPT
Seal Type: Mechanical (NBR/Ceramic)
Max Speed: 900 RPM (recommended for continuous duty)
Max Pressure: 100 PSI (continuous), higher for intermittent use
Temperature Range: Up to 140°F (for best life)
Bearings: Carbon graphite, self-lubricating
Mounting: Pedestal base, direct or belt drive

Lead times temporarily extended to 32 weeks.

$3,114.96

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Request a Quote

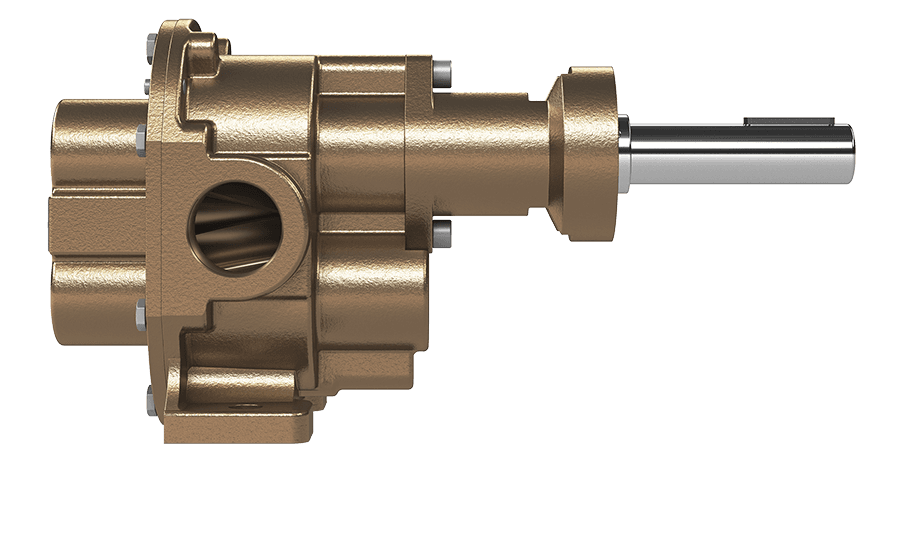

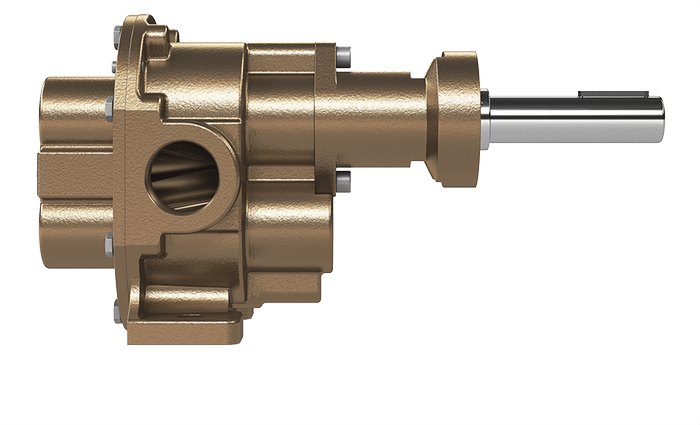

The OBN11HDM-06 is a bronze pedestal-mounted rotary gear pump designed for high-performance fluid transfer in demanding industrial and marine environments. Featuring 1¼" NPT ports and a mechanical seal (NBR/Ceramic), this positive displacement pump delivers consistent flow and pressure with excellent corrosion resistance.

Constructed with all-bronze castings, stainless steel shafts, and self-lubricating carbon bearings, the N11HDM-06 is engineered for long service life. It supports direct or belt drive configurations and includes an outboard ball bearing for added shaft support.

Recommended Applications:
Ideal for transferring lubricants, oils, and compatible chemicals in marine, industrial, and OEM systems requiring robust, corrosion-resistant, and serviceable gear pump performance.

Recommended Parts

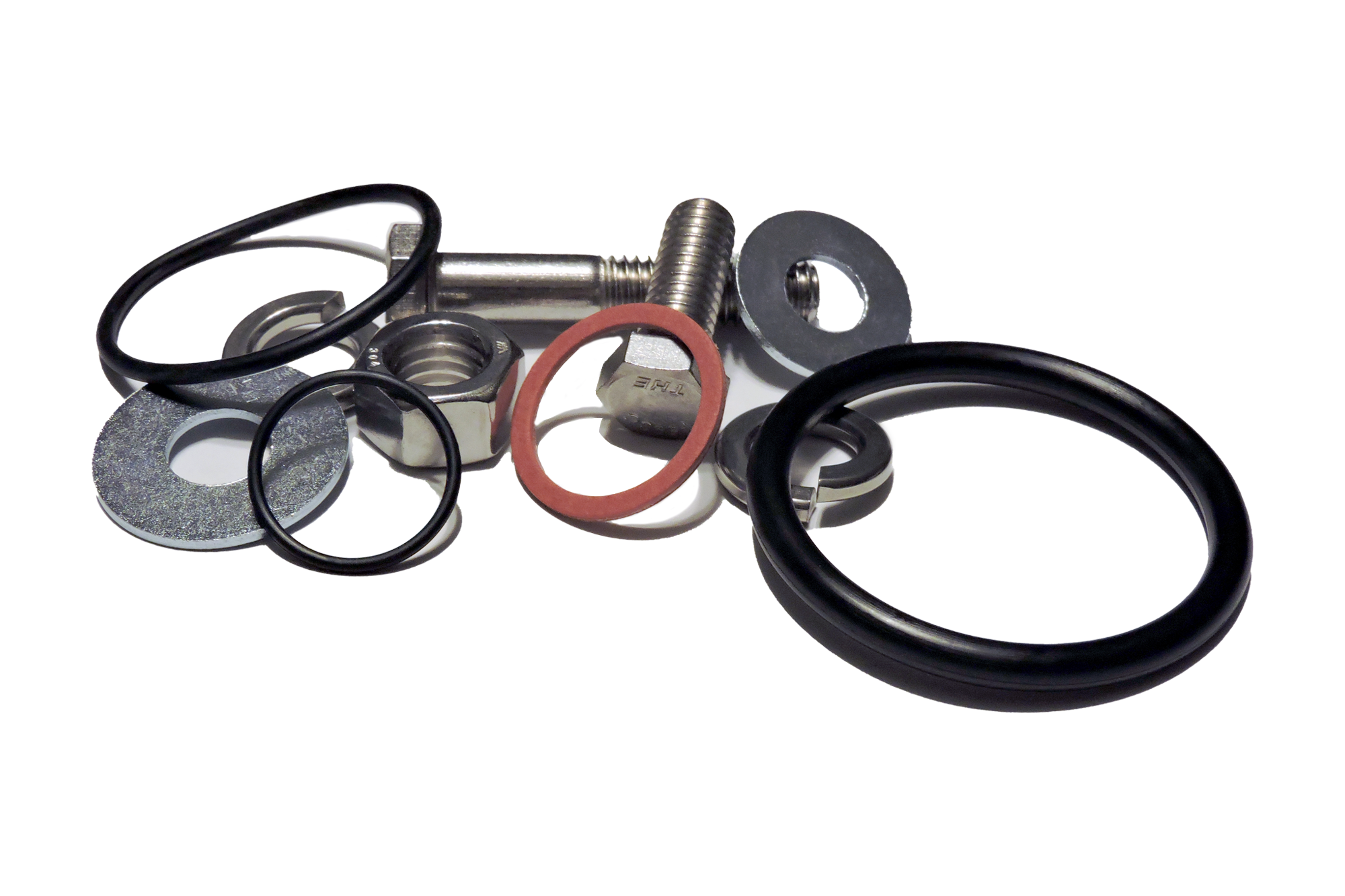

Repair Kit (N)11HDM | (OB11007)
