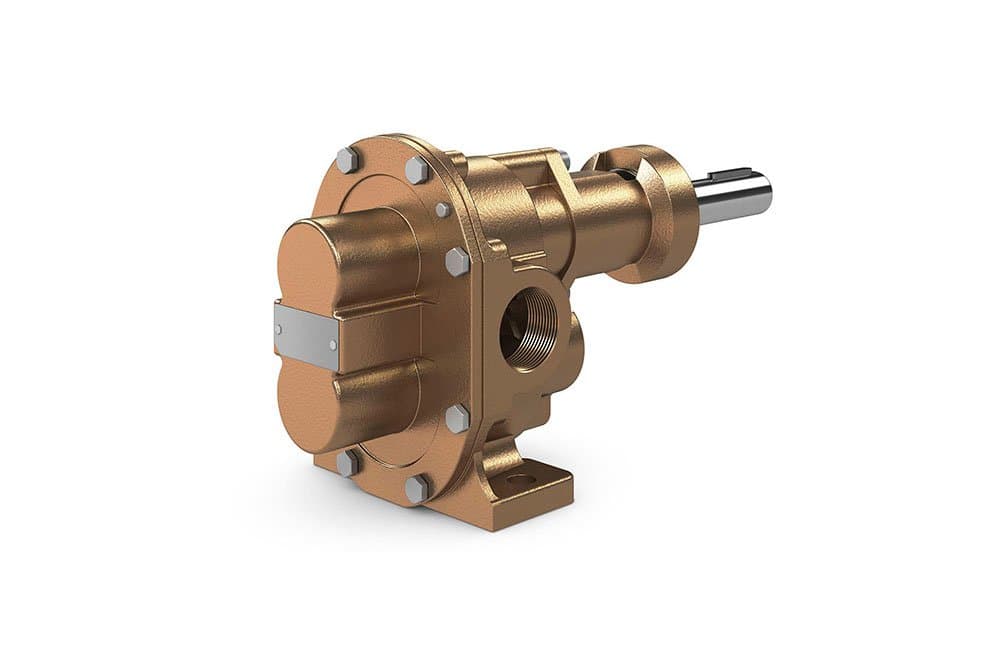

OBN13HDM | Bronze Pedestal Gear Pump, Buna | (N13)
OBN13HDM | Bronze Pedestal Gear Pump, Buna | (N13)
Art. No.: ob_obn13hdm
Art. No.: ob_obn13hdm
Key Features:
Material: Bronze housing and helical gears, stainless steel shaft
Port Size: 1 1/2" NPT inlet, 1 1/4" NPT outlet
Seal Type: Buna (NBR) mechanical seal (standard); optional Viton® or Teflon® seals available
Max Flow: Approx. 84 GPM at 50 PSI
Max Pressure: 150 PSI (lubricants), 100 PSI (non-lubricants)
Max Speed: 1750 RPM
Temperature Range: -40°F to 400°F (seal dependent)
Bearings: Carbon graphite, self-lubricating
Mounting: Pedestal base for belt or direct drive
Suction Lift: Up to 20 feet (when primed)
Lead times temporarily extended to 20 weeks.
$2,888.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The OBN13HDM is a high-capacity bronze pedestal-mounted rotary gear pump designed for demanding fluid transfer applications in industrial, marine, and OEM systems. Built with corrosion-resistant bronze castings and precision-machined helical gears, this pump ensures smooth, quiet, and efficient operation.
Equipped with a stainless steel shaft, Buna (NBR) seal, and self-lubricating carbon bearings, the N13HDM is engineered for long service life and reliable performance. Its pedestal base allows for flexible drive configurations, including belt or direct coupling.
Recommended Applications:
Ideal for transferring oils, lubricants, and compatible chemicals in high-volume marine, industrial, and OEM systems requiring robust, corrosion-resistant, and pressure-stable performance.
