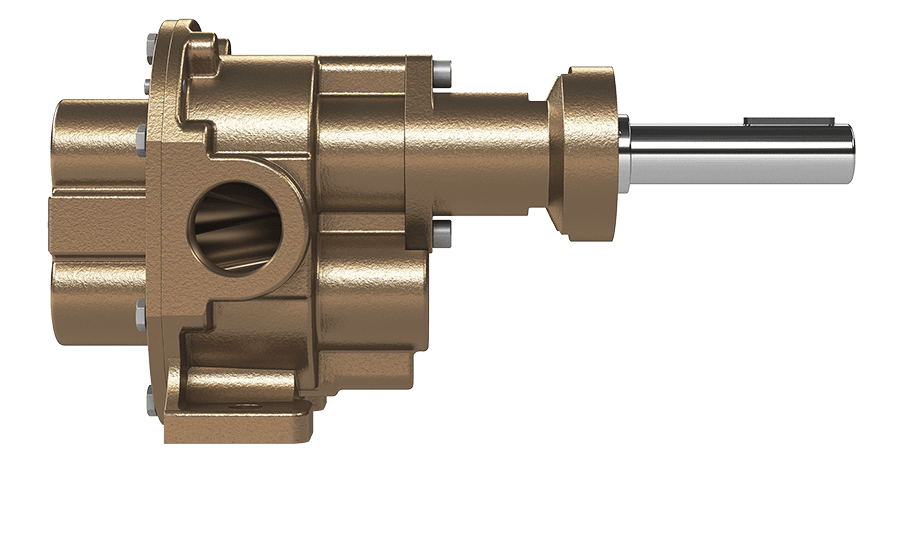

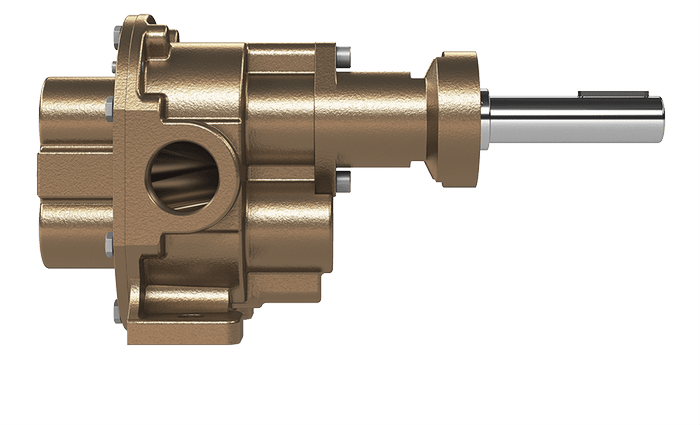

OBN13HDM-06 | Bronze Pedestal Gear Pump | (N13HDM)
SKU: obn13hdm-06
SKU: obn13hdm-06
Key Features:
- Material: Bronze housing and helical gears, stainless steel shaft
- Port Size: 1 1/2" NPT inlet, 1 1/4" NPT outlet
- Seal Type: Mechanical seal (standard); optional lip or packing seals available
- Max Flow: Approx. 84 GPM at 50 PSI
- Max Pressure: 150 PSI (lubricants), 100 PSI (non-lubricants)
- Max Speed: 1750 RPM
- Temperature Range: -40°F to 400°F (seal dependent)
- Bearings: Carbon graphite, self-lubricating
- Mounting: Pedestal base for belt or direct drive
- Suction Lift: Up to 20 feet (when primed)
Lead times temporarily extended to 12 weeks.
$4,101.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBN13HDM-06 is a heavy-duty bronze pedestal-mounted rotary gear pump designed for high-capacity fluid transfer in industrial, marine, and OEM systems. Built with corrosion-resistant bronze castings and precision-machined helical gears, this pump delivers reliable, quiet, and efficient performance.
Equipped with a stainless steel shaft and self-lubricating carbon bearings, the N13HDM series is engineered for long service life and minimal maintenance. Its pedestal base allows for flexible drive configurations, including belt or direct coupling.
Recommended Applications:
Ideal for transferring oils, lubricants, and compatible chemicals in high-volume marine, industrial, and OEM systems requiring robust, corrosion-resistant, and pressure-stable performance.
