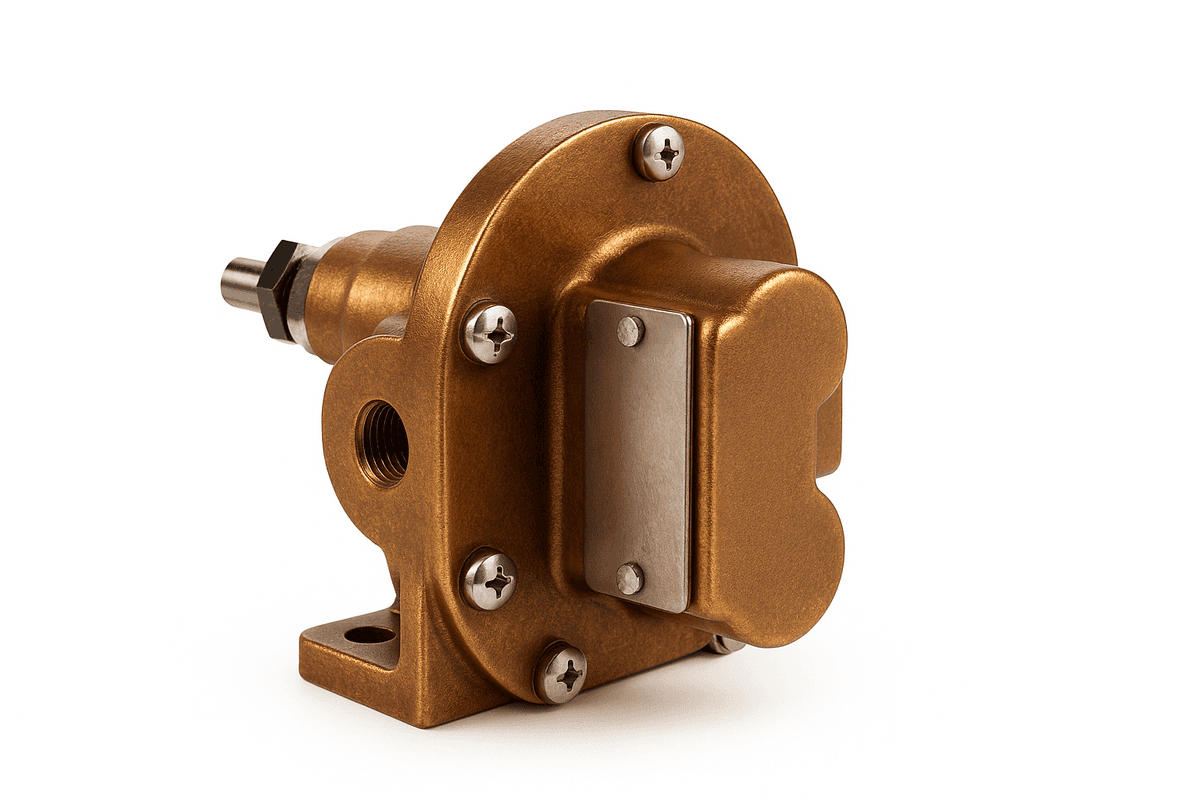

OBN2000R-50 | Bronze Gear Pump, Relief, Buna | (N2000)
SKU: obn2000r-50
SKU: obn2000r-50
Key Features:
- Material: Bronze housing, stainless steel shaft
- Port Size: 1/4" NPT
- Seal Type: Buna (NBR) lip seal
- Relief Valve: Built-in, factory set at 50 PSI
- Max Pressure: 150 PSI (lubricants), 100 PSI (non-lubricants)
- Max Speed: 1750 RPM
- Temperature Range: -40°F to 212°F (seal limited)
- Bearings: Carbon graphite, self-lubricating
- Mounting: Pedestal base for direct or belt drive
- Suction Lift: Up to 20 feet
Lead times temporarily extended to 12 weeks.
$949.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBN2000R-50 is a bronze pedestal-mounted rotary gear pump equipped with a built-in pressure relief valve and a Buna (NBR) lip seal. Designed for clean, lubricating fluids, this positive displacement pump delivers consistent flow and pressure in compact, corrosion-resistant form.
With 1/4" NPT ports and stainless steel shafts, the N2000R-50 is ideal for OEM, marine, and industrial applications. It supports suction lifts up to 20 feet and can be driven via flexible coupling or pulley. The integrated relief valve is factory-set at 50 PSI to protect the system from overpressure.
Recommended Applications:
Ideal for transferring oils, lubricants, and compatible chemicals in marine, industrial, and OEM systems requiring compact, corrosion-resistant, and pressure-stable performance with built-in overpressure protection.
