OBN202M-15 | Bronze Engine Cooling Pump | (N202M)
SKU: obn202m-15
SKU: obn202m-15
Key Features:
- Material: Bronze housing, stainless steel shaft
- Port Size: 1/2" FNPT (standard)
- Drive: Slotted shaft or male tang
- Impeller: Neoprene (replaceable)
- Max Suction Lift: 15 feet (primed)
- Temperature Range: 40°F to 140°F
- Mounting: Flange-mounted, multiple bolt patterns
- Seal: Dual seal system for pump and flange
Lead times temporarily extended to 12 weeks.
Build to Order
$530.00

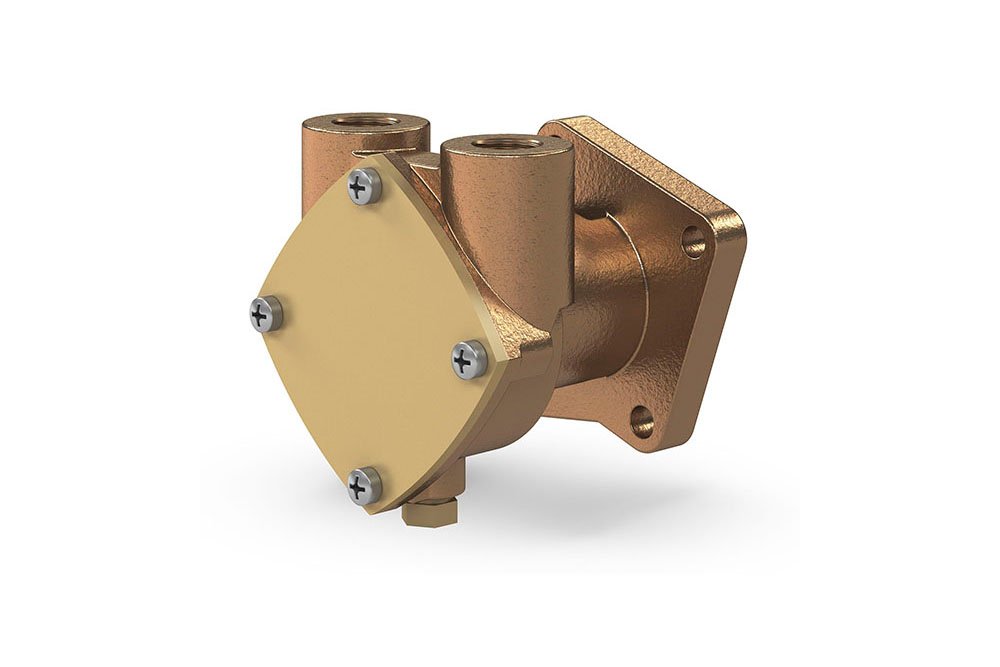

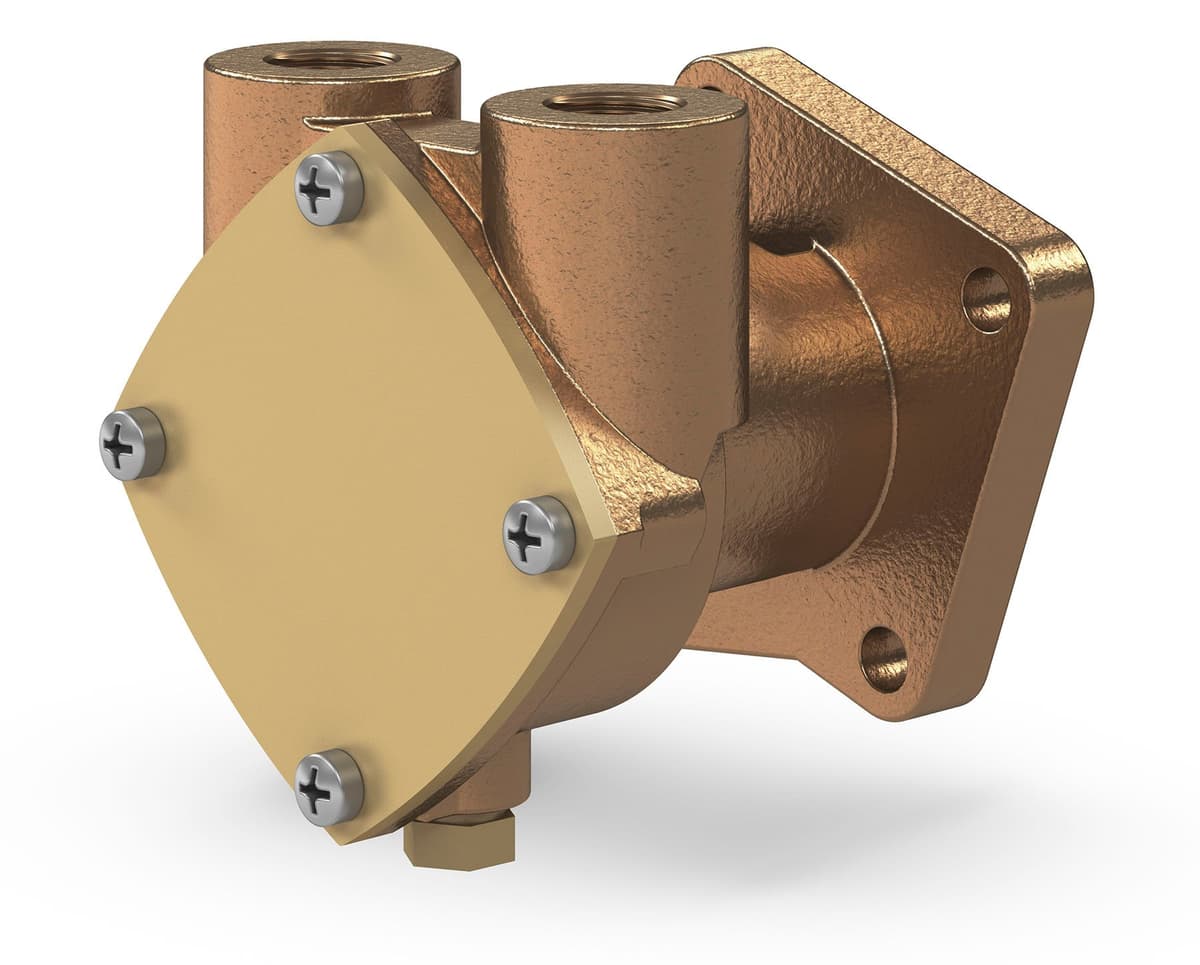

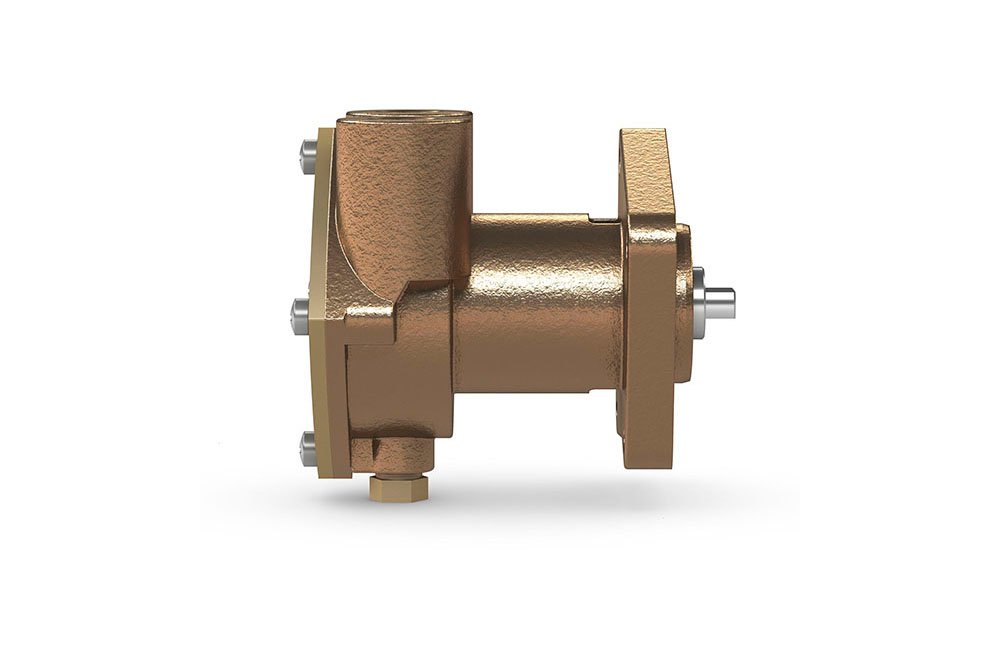

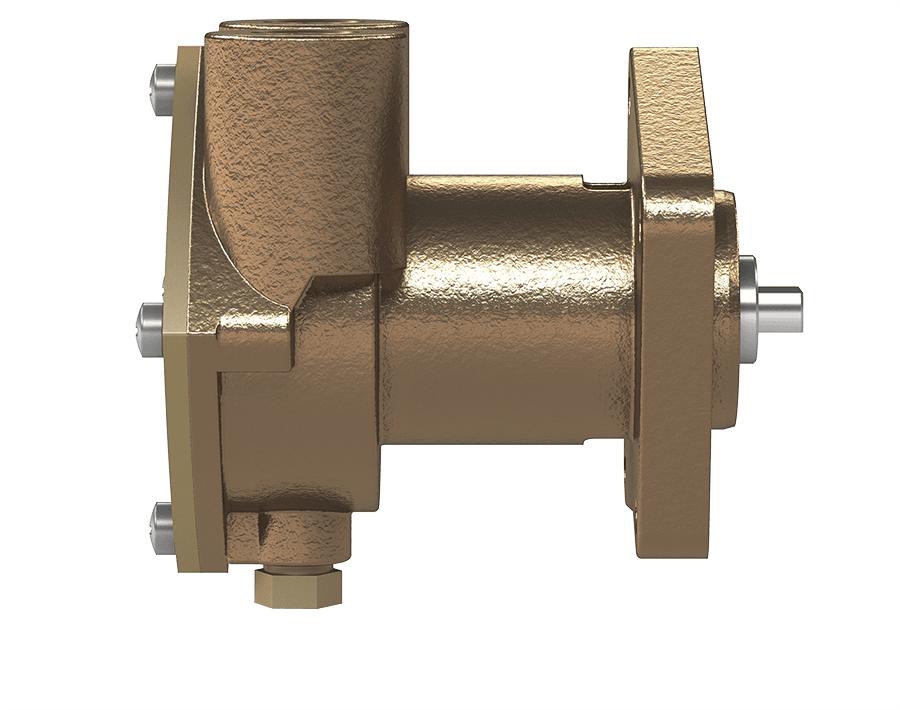

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The N202M is a compact, engine-mounted bronze rubber impeller pump designed for marine and industrial applications requiring reliable self-priming and corrosion resistance. It features a high-chrome stainless steel shaft, vertical FNPT ports, and a slotted shaft or male tang drive. The pump includes dual seals for added protection and a drain plug for easy maintenance.
Capable of lifting fluids up to 15 feet when primed, the N202M handles fresh and salt water, mild chemicals, and oil-contaminated liquids. It is not suitable for gasoline or aggressive solvents. The neoprene impeller is easily replaceable, and the pump is available in multiple configurations to fit Universal, Kubota, Onan, and Westerbeke engines.
Recommended Applications:
Ideal for marine engine cooling, bilge pumping, and light-duty fluid transfer in industrial and OEM systems.
Capable of lifting fluids up to 15 feet when primed, the N202M handles fresh and salt water, mild chemicals, and oil-contaminated liquids. It is not suitable for gasoline or aggressive solvents. The neoprene impeller is easily replaceable, and the pump is available in multiple configurations to fit Universal, Kubota, Onan, and Westerbeke engines.
Recommended Applications:
Ideal for marine engine cooling, bilge pumping, and light-duty fluid transfer in industrial and OEM systems.
| MODEL | PORTS SIZE / ORIENTATION |
CAM | FLANGE | PILOT | SHAFT | DESIGNED FOR | REFERENCE | BUY NOW | |
|---|---|---|---|---|---|---|---|---|---|
| N202M-11 | 1" HOSE | Vertical | FULL | 4 BOLT | MALE | TANG | Onan - Kubota | 132-0277 | BUY NOW |
| N202M-15 | 3/8 FNPT | Vertical | FULL | 5 BOLT | MALE | TANG | Universal Series - Super Mini Kubota Diesel | 301357 | BUY NOW |
| N202M-16 | 1/2 FNPT | Vertical | FULL | 5 BOLT | MALE | TANG | Universal Series - Super Mini Kubota Diesel | BUY NOW | |
