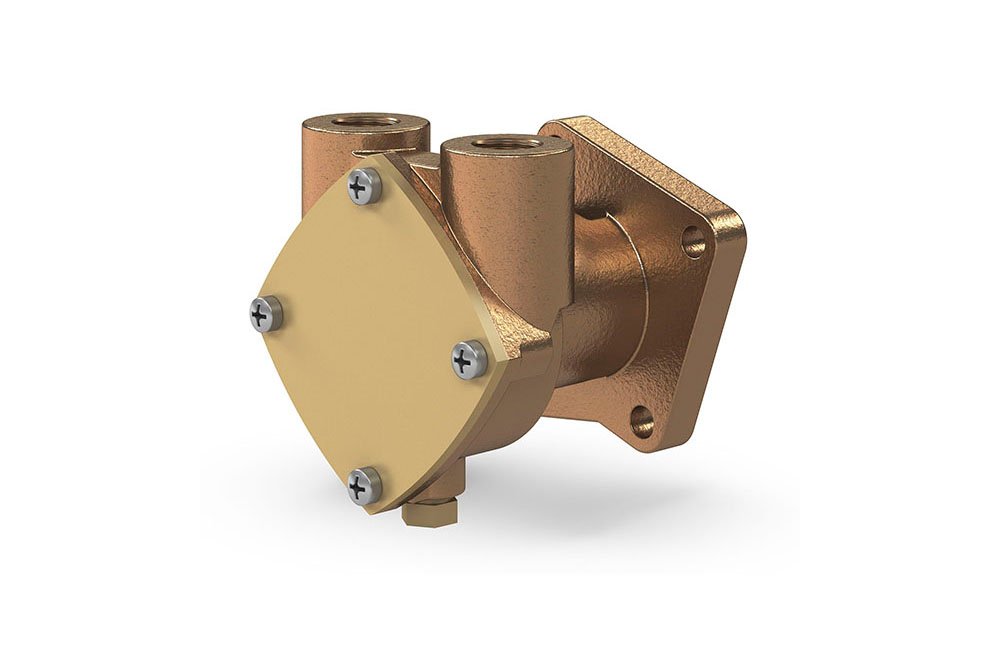

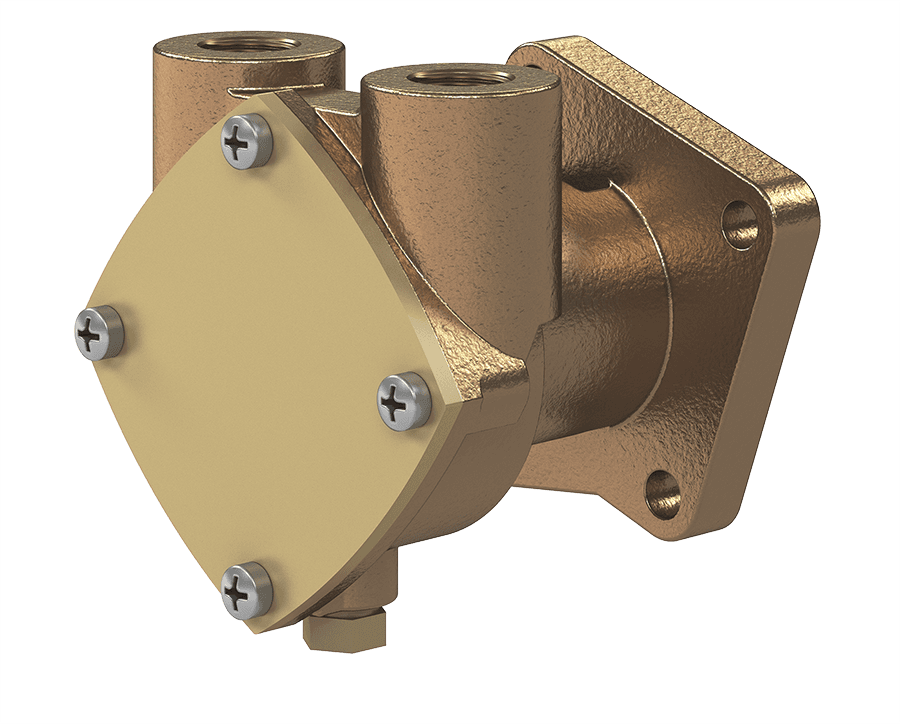

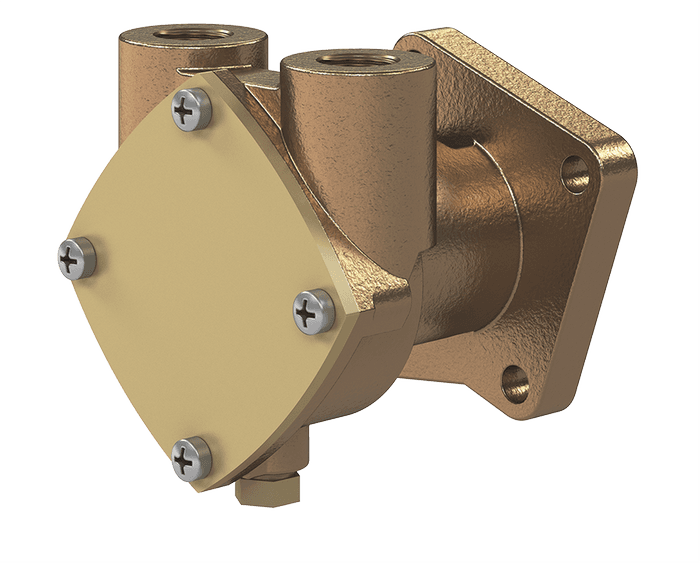

OBN202M-16 | Bronze Engine Cooling Pump | (N202M)
SKU: obn202m-16
SKU: obn202m-16
Key Features:
- Material: Bronze housing, stainless steel shaft
- Port Size: 1/2" FNPT (vertical orientation)
- Seal Type: Dual lip seals (main pump and flange)
- Impeller: Neoprene, easily replaceable
- Mounting: 5-bolt flange, male tang drive
- Cam Type: Full cam for maximum flow
- Max Speed: Up to 3450 RPM
- Max Head: 60 feet (26 PSI)
- Max Flow: Approx. 11 GPM (at 3450 RPM)
- Suction Lift: Up to 15 feet (when primed)
- Temperature Range: 40°F to 140°F (neoprene impeller)
- Drain Plug: Included for easy winterization and maintenance
Lead times temporarily extended to 12 weeks.
$539.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBN202M-16 is a bronze rubber impeller pump designed for reliable engine cooling in marine and industrial applications. Engineered for Universal Series and Super Mini Kubota Diesel engines, this pump features a 1/2" FNPT port configuration, vertical inlet/outlet orientation, and a full cam for optimal flow performance.
Built with a corrosion-resistant bronze body and a high chrome nickel stainless steel shaft, the OBN202M-16 ensures long-lasting durability in harsh environments. The neoprene impeller is easily replaceable, and the pump includes a convenient drain plug for maintenance. A male tang drive and 5-bolt flange mounting make installation straightforward.
Recommended Applications:
Ideal for engine cooling in marine diesel systems, particularly Universal Series and Kubota Super Mini engines. Suitable for pumping fresh and salt water, as well as mild chemicals compatible with neoprene. Not recommended for gasoline or aggressive solvents.
Built with a corrosion-resistant bronze body and a high chrome nickel stainless steel shaft, the OBN202M-16 ensures long-lasting durability in harsh environments. The neoprene impeller is easily replaceable, and the pump includes a convenient drain plug for maintenance. A male tang drive and 5-bolt flange mounting make installation straightforward.
Recommended Applications:
Ideal for engine cooling in marine diesel systems, particularly Universal Series and Kubota Super Mini engines. Suitable for pumping fresh and salt water, as well as mild chemicals compatible with neoprene. Not recommended for gasoline or aggressive solvents.
| MODEL | PORTS SIZE / ORIENTATION |
CAM | FLANGE | PILOT | SHAFT | DESIGNED FOR | REFERENCE | BUY NOW | |
|---|---|---|---|---|---|---|---|---|---|
| N202M-11 | 1" HOSE | Vertical | FULL | 4 BOLT | MALE | TANG | Onan - Kubota | 132-0277 | BUY NOW |
| N202M-15 | 3/8 FNPT | Vertical | FULL | 5 BOLT | MALE | TANG | Universal Series - Super Mini Kubota Diesel | 301357 | BUY NOW |
| N202M-16 | 1/2 FNPT | Vertical | FULL | 5 BOLT | MALE | TANG | Universal Series - Super Mini Kubota Diesel | BUY NOW | |
