OBN202M-17P | Bronze Engine Cooling Pump | (N202M)

Art. No.: ob_OBN202M-17P

OBN202M-17P | Bronze Engine Cooling Pump | (N202M) thumbnail 1

OBN202M-17P | Bronze Engine Cooling Pump | (N202M) thumbnail 2

Art. No.: ob_OBN202M-17P

Key Features:

Material: Bronze housing, stainless steel shaft
Port Size: 3/4" x 5/8" FNPT, 135° orientation
Drive: Male tang, 2-bolt flange mount
Impeller: Neoprene (replaceable)
Max Suction Lift: 15 feet (primed)
Temperature Range: 40°F to 140°F
Seal: Dual seal system
Applications: Engine cooling, marine systems

Lead times temporarily extended to 30 weeks.

$838.48

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Request a Quote

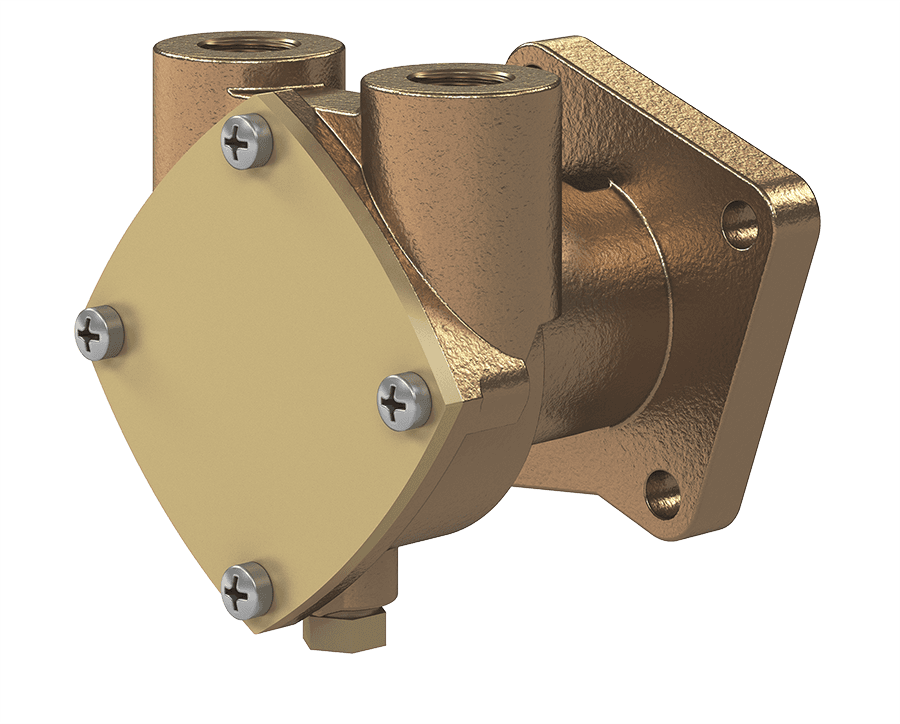

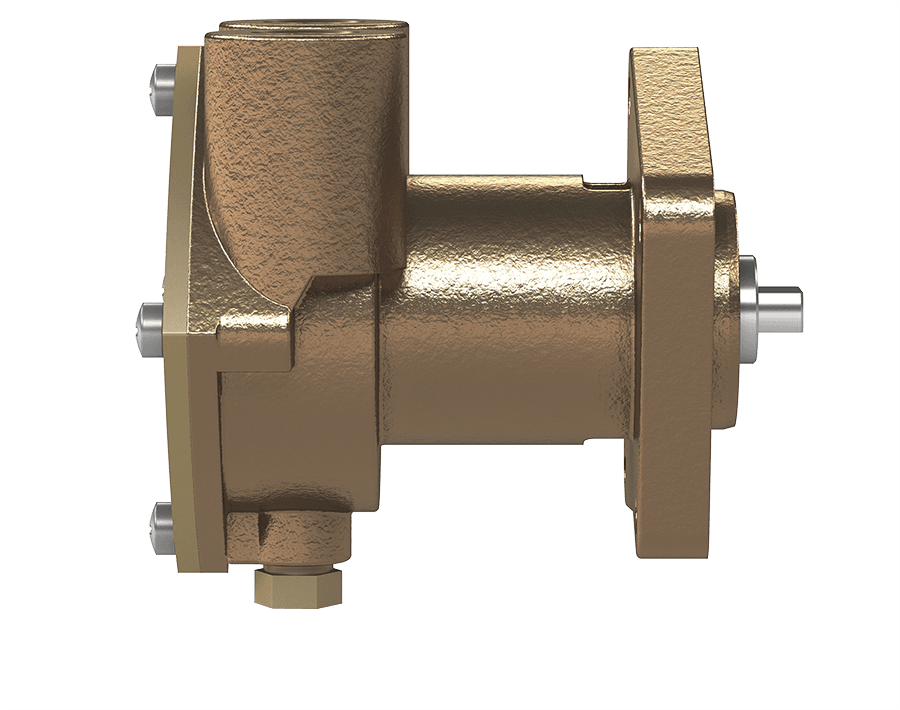

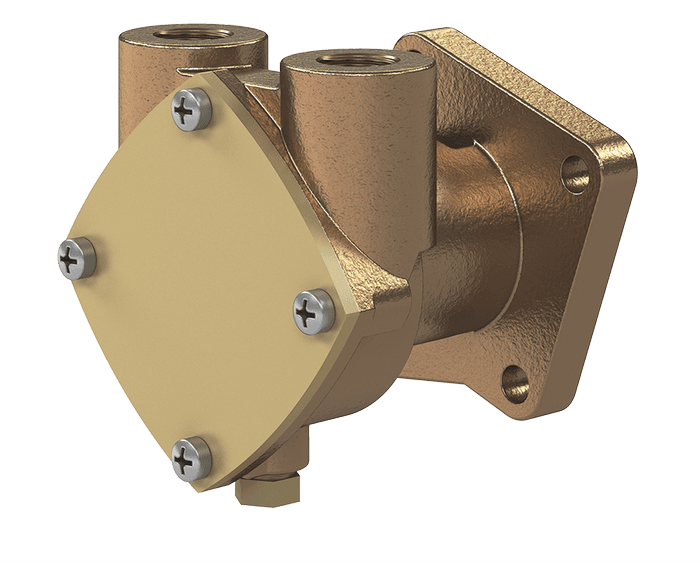

The OBN202M-17P is a bronze rubber impeller pump designed for engine cooling in Kubota V1505 engines, specifically for mounting behind the injection pump. It features a 3/4" x 5/8" FNPT port configuration at a 135° angle, a 2-bolt flange, and a male tang drive. The pump includes a high-chrome nickel stainless steel shaft and a replaceable neoprene impeller for reliable, corrosion-resistant performance.

This self-priming pump supports suction lifts up to 15 feet when primed and is equipped with dual seals for both the pump and flange. It is ideal for circulating fresh or salt water and mild chemicals, with a recommended operating temperature range of 40°F to 140°F.

Recommended Applications:
Ideal for Kubota V1505 engine cooling systems in marine and industrial environments requiring compact, corrosion-resistant, and self-priming performance.
