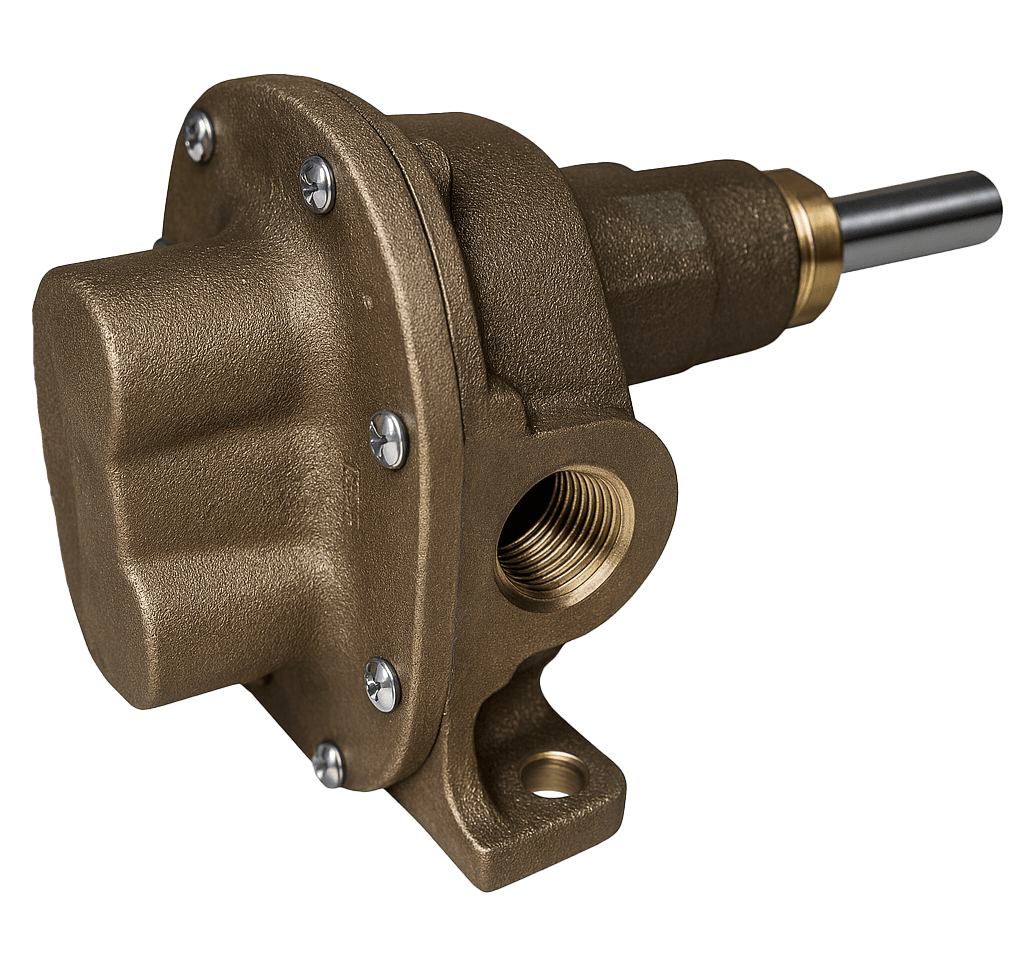

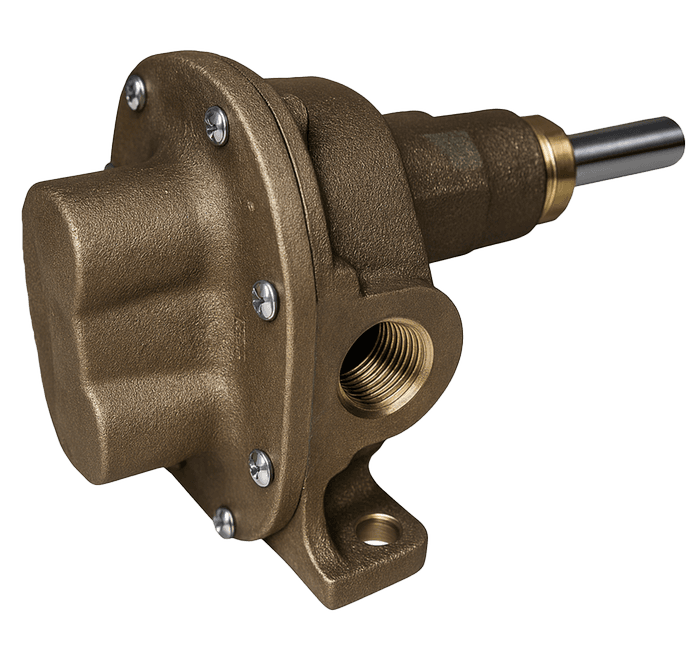

OBN7000RS15-70 | Bronze Pedestal Gear Pump, Relief, Viton, Hi Pre | (N7000)
SKU: obn7000rs15-70
SKU: obn7000rs15-70
Key Features:
- Material: Bronze housing, stainless steel shaft
- Port Size: 3/4" NPT
- Seal Type: Viton® (FKM) lip seal (standard); mechanical and PTFE seals optional
- Relief Valve: Integrated, factory-set at 50 PSI (adjustable)
- Max Pressure: Suitable for high-pressure applications with lubricating fluids
- Max Speed: 1750 RPM
- Temperature Range: -40°F to 400°F (seal dependent); Viton® up to 212°F
- Bearings: Carbon graphite, self-lubricating
- Mounting: Pedestal base for flexible drive options
- Suction Lift: Up to 20 feet
- Drive Options: Direct coupling or pulley; external bearing support recommended for belt drive
Lead times temporarily extended to 12 weeks.
$1,544.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBN7000RS15-70 is a high-pressure bronze pedestal-mounted rotary gear pump with an integrated relief valve, engineered for demanding fluid transfer applications. Featuring 3/4" NPT ports and a Viton® lip seal, this positive displacement pump delivers reliable performance with excellent chemical and thermal resistance.
Constructed with corrosion-resistant bronze castings, stainless steel shafts, and self-lubricating carbon bearings, the OBN7000RS15-70 is ideal for handling clean, lubricating fluids. The integrated relief valve protects against overpressure, while the pedestal design supports both direct and belt drive configurations.
Recommended Applications:
Ideal for transferring oils, polymers, and compatible chemicals in marine, industrial, and OEM systems requiring high-pressure, corrosion-resistant, and thermally stable performance. Not recommended for abrasive or solid-laden fluids.
