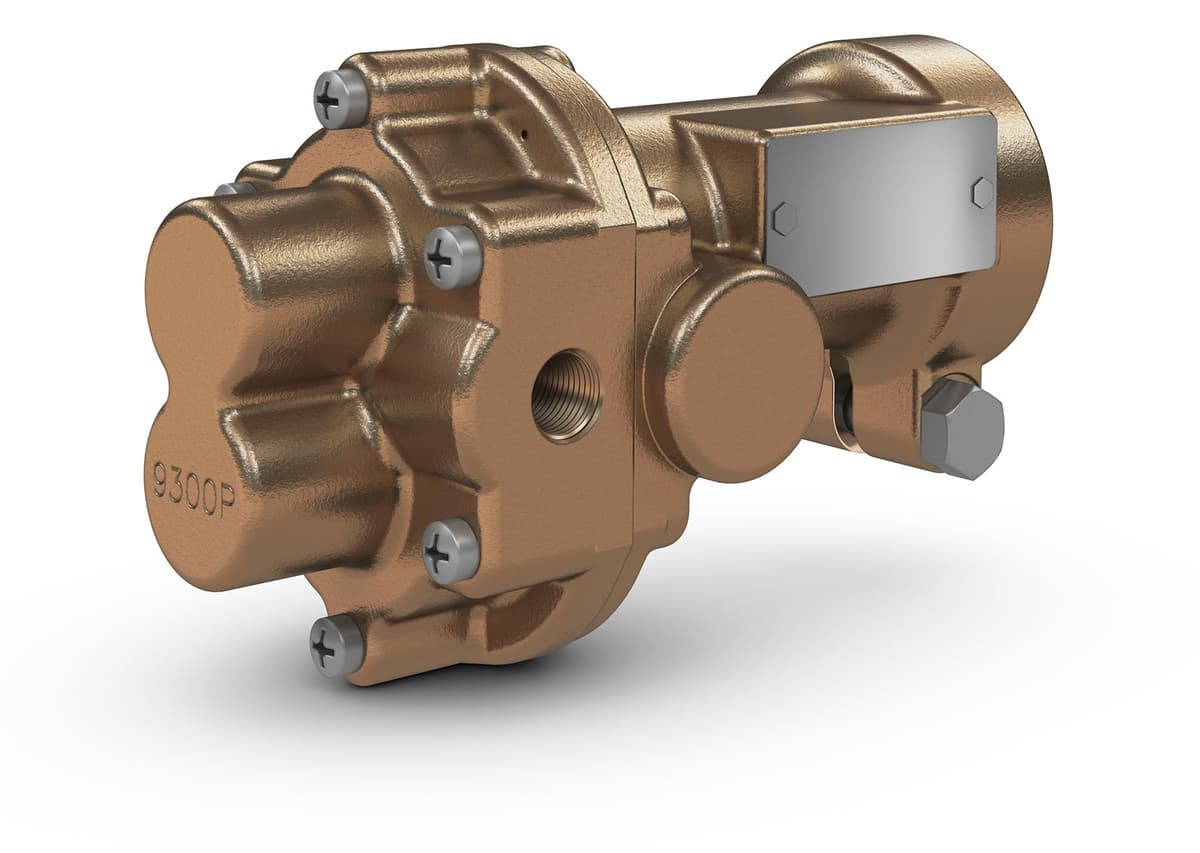

OBN991R-32A89 | Bronze Gear Pump and Motor Unit, 1/10Hp 24V 2300 Rpm | (N992)
OBN991R-32A89 | Bronze Gear Pump and Motor Unit, 1/10Hp 24V 2300 Rpm | (N992)
Art. No.: ob_obn991r-32a89
Art. No.: ob_obn991r-32a89
Key Features:
Material: Bronze housing, stainless steel shaft
Port Size: 1/4" NPT
Seal Type: Buna (NBR) lip seal
Motor: 1/10 HP, 24V DC, 2300 RPM
Relief Valve: Built-in, factory set at 50 PSI
Max Pressure: 150 PSI (lubricants), 100 PSI (non-lubricants)
Max Speed: 1750 RPM (pump rated)
Temperature Range: 32°F to 212°F (seal dependent)
Bearings: Carbon graphite, self-lubricating
Mounting: Close-coupled to motor
Suction Lift: Up to 20 feet (primed)
Lead times temporarily extended to 20 weeks.
$1,058.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.
The OBN991R-32A89 is a compact, close-coupled bronze gear pump with an integrated 1/10 HP, 24V DC motor operating at 2300 RPM. Designed for reliable transfer of clean, lubricating fluids, this positive displacement pump features a built-in relief valve and Buna (NBR) lip seal for dependable performance in OEM and mobile applications.
With 1/4" NPT ports and a corrosion-resistant bronze body, the N991R-32A89 is ideal for water, oils, and mild chemicals. The integrated relief valve is factory-set at 50 PSI to protect the system from overpressure.
Recommended Applications:
Ideal for mobile equipment, marine systems, and OEM fluid transfer where compact size, corrosion resistance, and integrated overpressure protection are essential.
