OBN993C-N47 | Bronze Gear Pump with Motor | (N993)

Art. No.: ob_obn993c-n47

Material: Bronze housing, stainless steel shaft
Port Size: 1/2" NPT
Seal Type: NBR lip seal (standard); FKM, PTFE, and mechanical seals optional
Relief Valve: Optional (R-models); factory-set at 50 PSI
Max Pressure: 150 PSI (lubricants), 100 PSI (non-lubricants)
Max Speed: 1750 RPM
Temperature Range: 32°F to 140°F (standard); consult factory for extended range
Bearings: Carbon graphite, self-lubricating
Mounting: Close-coupled to motor via adapter bracket
Suction Lift: Up to 20 feet
Drive Options: Integrated motor (N47 configuration); adapter kits available for other frames

Lead times temporarily extended to 20 weeks.

$2,309.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.

Request a Quote

The OBN993C-N47 is a bronze close-coupled rotary gear pump with an integrated motor, engineered for compact and efficient fluid transfer in industrial, marine, and OEM applications. Featuring 1/2" NPT ports and a corrosion-resistant design, this positive displacement pump delivers consistent flow and pressure with quiet operation.

Equipped with durable bronze helical gears, stainless steel shafts, and carbon graphite bearings, the OBN993C-N47 ensures long service life and minimal maintenance. The integrated motor simplifies installation and is compatible with standard NEMA frame sizes.

Recommended Applications:
Ideal for transferring oils, lubricants, and compatible chemicals in marine, industrial, and OEM systems requiring compact, corrosion-resistant, and pressure-stable performance. Not suitable for abrasive or solid-laden fluids.

Recommended Parts

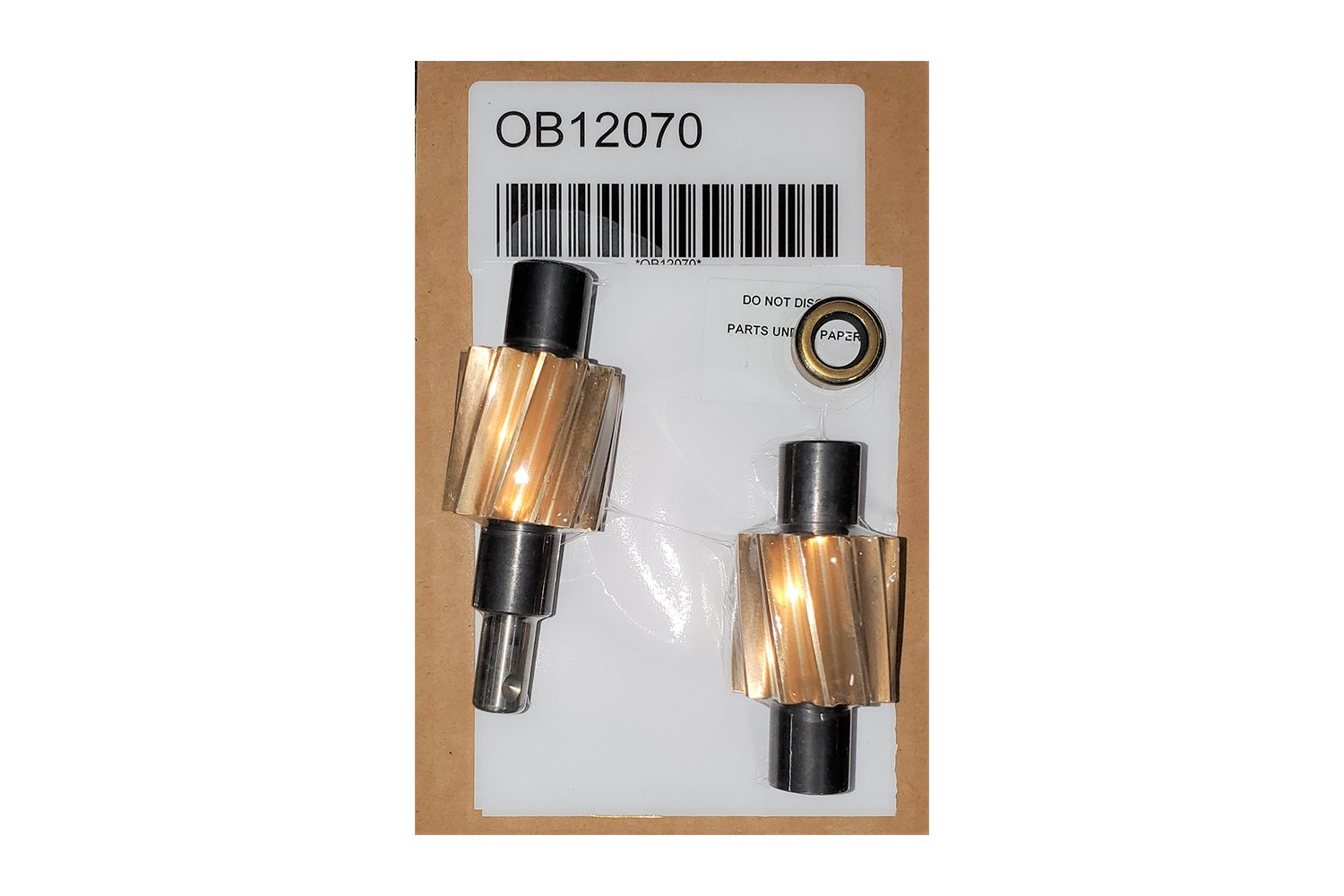

Repair Kit N993, N993-03 | (OB12070)
