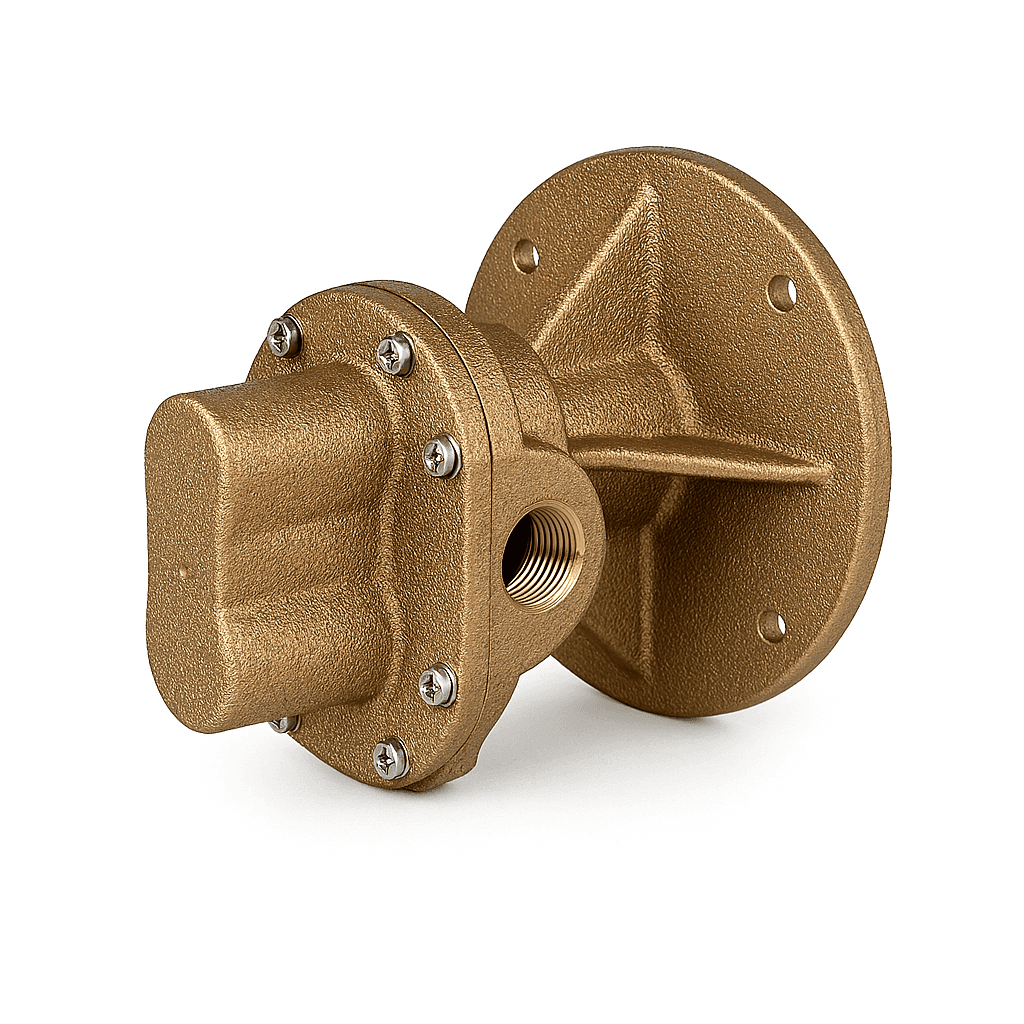

OBN994H-T97 | Bronze Gear Pump and Motor, 1 1/2Hp, 1725 Rpm, 230/460 V, 3 phase | (N994)
SKU: obn994h-t97
SKU: obn994h-t97
Key Features:
- Material: Bronze housing, stainless steel shaft
- Port Size: 1/2" NPT
- Seal Type: Lip or mechanical seal options available (FKM, PTFE, NBR)
- Relief Valve: Integrated, factory-set at 50 PSI (adjustable)
- Motor: 1.5 HP, 1725 RPM, 230/460V, 3-phase
- Max Pressure: 150 PSI (lubricants), 100 PSI (non-lubricants)
- Max Speed: 1750 RPM
- Temperature Range: 32°F to 212°F (seal dependent)
- Bearings: Carbon graphite, self-lubricating
- Mounting: Close-coupled to motor via adapter bracket
- Suction Lift: Up to 20 feet
- Drive Options: Direct motor coupling; adapter kits available for various NEMA frames
Lead times temporarily extended to 12 weeks.
$2,857.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBN994H-T97 is a bronze close-coupled rotary gear pump and motor assembly designed for high-performance fluid transfer in industrial and marine applications. Featuring 1/2" NPT ports, a 1.5 HP motor operating at 1725 RPM, and 230/460V 3-phase power, this unit delivers reliable, quiet, and efficient operation.
The pump is constructed with corrosion-resistant bronze housing, stainless steel shafts, and helical bronze gears for smooth, low-noise performance. It includes self-lubricating carbon graphite bearings and an O-ring cover seal for maximum leak protection. The integrated relief valve provides overpressure safety, and the flexible coupling ensures precise motor alignment.
Recommended Applications:
Ideal for transferring oils, lubricants, and compatible chemicals in marine, industrial, and OEM systems requiring compact, corrosion-resistant, and pressure-stable performance. Not suitable for abrasive or solid-laden fluids.
The pump is constructed with corrosion-resistant bronze housing, stainless steel shafts, and helical bronze gears for smooth, low-noise performance. It includes self-lubricating carbon graphite bearings and an O-ring cover seal for maximum leak protection. The integrated relief valve provides overpressure safety, and the flexible coupling ensures precise motor alignment.
Recommended Applications:
Ideal for transferring oils, lubricants, and compatible chemicals in marine, industrial, and OEM systems requiring compact, corrosion-resistant, and pressure-stable performance. Not suitable for abrasive or solid-laden fluids.
