OBNL9000L | Bronze Gear Pump, Packaging Grease Fitt'S No Brg'S | (NL9000)

Art. No.: ob_obnl9000l

Key Features:

Material: Bronze housing, stainless steel shaft
Port Size: 1" NPT
Seal Type: Compression packing (standard); Buna and Viton®/Teflon® lip seals optional
Max Pressure: Up to 150 PSI (lubricants); 125 PSI continuous recommended
Max Speed: 1725 RPM
Temperature Range: -40°F to 400°F (seal dependent); lip seals up to 212°F
Bearings: Bronze bearing surfaces with grease fittings (no carbon bearings)
Mounting: Pedestal base for direct or belt drive
Suction Lift: Up to 20 feet
Flow Rate: Up to 23 GPM at 1725 RPM
Drive Options: Direct coupling preferred; belt drive requires additional support

Lead times temporarily extended to 32 weeks.

$1,609.14

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Request a Quote

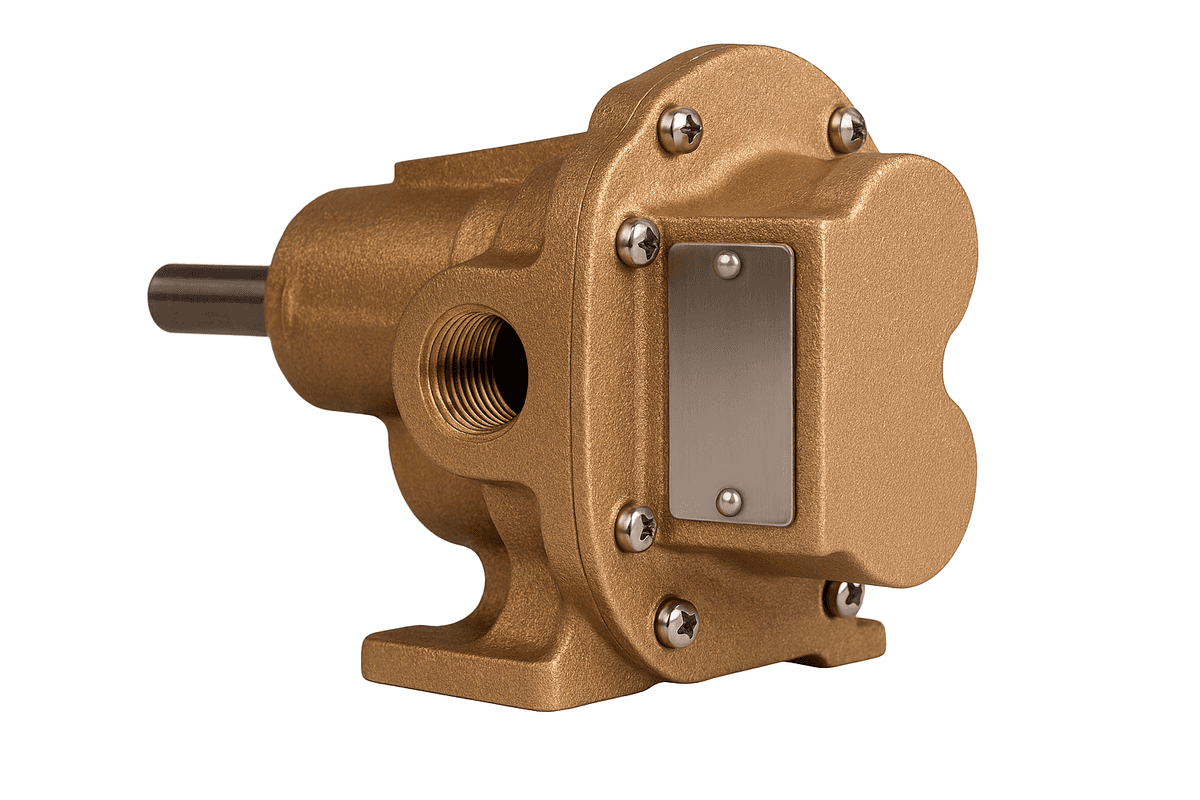

The OBNL9000L is a bronze pedestal-mounted rotary gear pump designed for high-capacity fluid transfer in industrial and marine applications. Featuring 1" NPT ports and a traditional compression packing seal, this positive displacement pump delivers consistent flow and pressure with excellent corrosion resistance.

This model is built with bronze castings, stainless steel shafts, and bronze bearing surfaces with grease fittings. It is engineered for clean, lubricating fluids and is ideal for systems requiring robust, long-lasting performance without carbon bearings.

Recommended Applications:
Ideal for transferring oils, lubricants, and compatible chemicals in marine, industrial, and OEM systems requiring high flow, corrosion resistance, and pressure-stable performance. Not suitable for abrasive or solid-laden fluids.

Recommended Parts

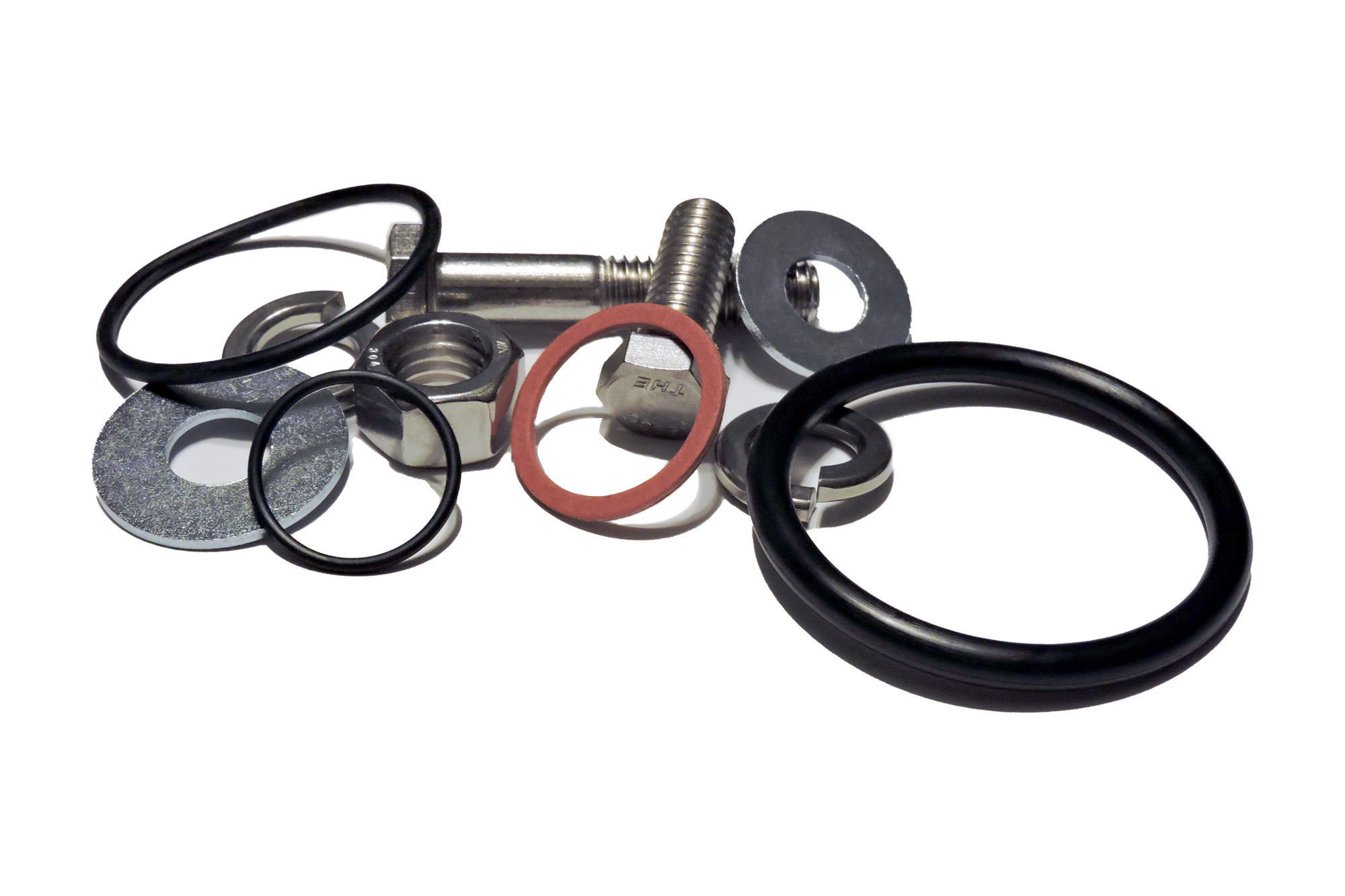

Repair Kit, Lead Free Alloy Kit | (OBNL9000LK)
