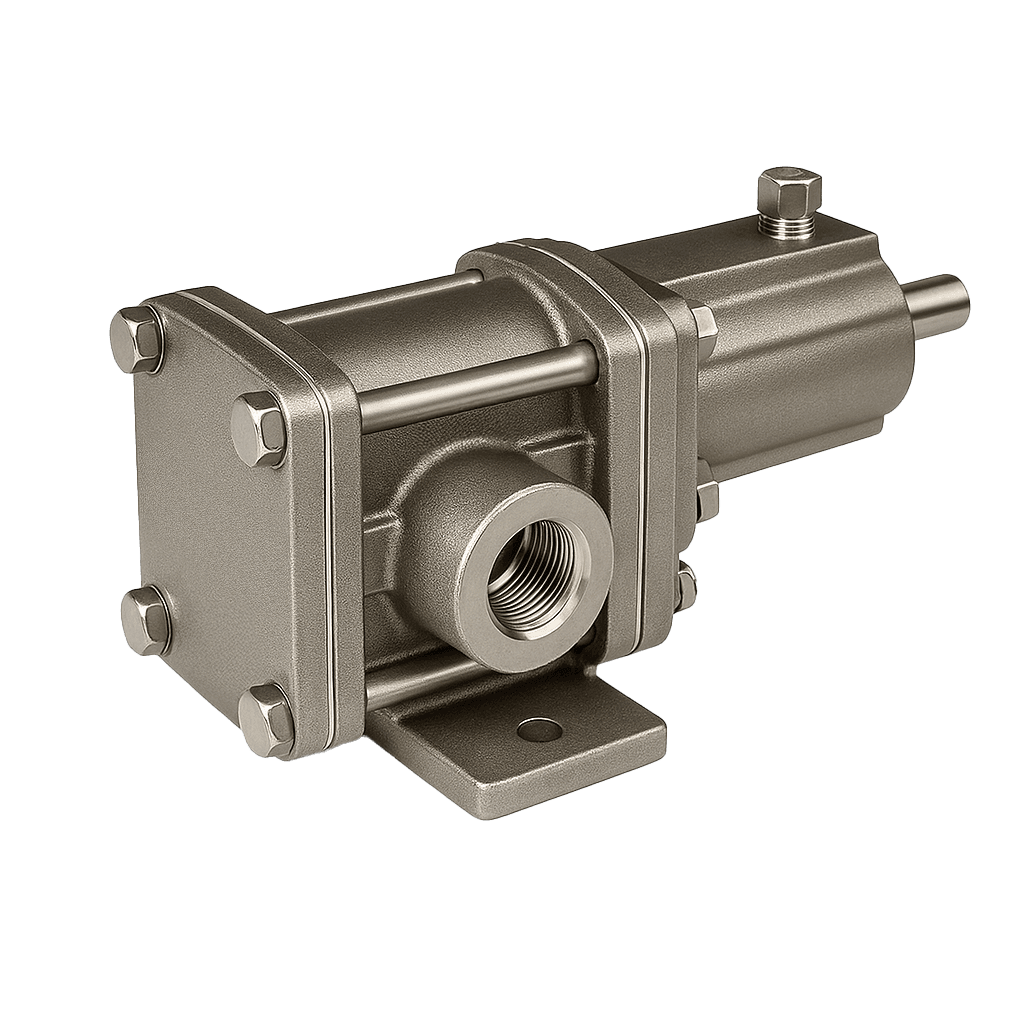

Chemsteel Gear Pump with Motor | R10611 | (OBR10611CB-25J22)
SKU: obr10611cb-25j22
SKU: obr10611cb-25j22
Key Features:
- Material: 316 stainless steel housing and shaft
- Port Size: 1/2" FNPT or BSPT
- Seal Type: Mechanical seal (various options available)
- Max Flow: 3 GPM
- Displacement: 7.5 cc/rev
- Max Differential Pressure: 150 PSI
- Max System Pressure: 300 PSI
- Max Speed: 1800 RPM
- Temperature Range: -50°F to 450°F
- Mounting: NEMA or IEC close-coupled adapters
- Bearings: Carbon or PTFE
- Drive: Bi-directional operation supported
Lead times temporarily extended to 12 weeks.
$4,678.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBR10611CB-25J22 is a Chemsteel™ R106 series metallic gear pump with motor, engineered for precise and reliable transfer of corrosive and high-purity fluids. Designed for demanding chemical processing applications, this close-coupled unit features a 316 stainless steel housing, helical gears, and a robust mechanical seal configuration.
With a maximum flow of 3 GPM at 1750 RPM and pressure capabilities up to 150 PSI differential (300 PSI system), the R10611 is ideal for metering, dosing, and circulation of aggressive or viscous fluids. Its modular, three-piece housing with TFE-encapsulated O-rings ensures long-lasting sealing performance and easy maintenance.
Recommended Applications:
Ideal for chemical processing, pharmaceutical, food-grade, and OEM systems requiring corrosion resistance, precise flow control, and high-pressure capability.
