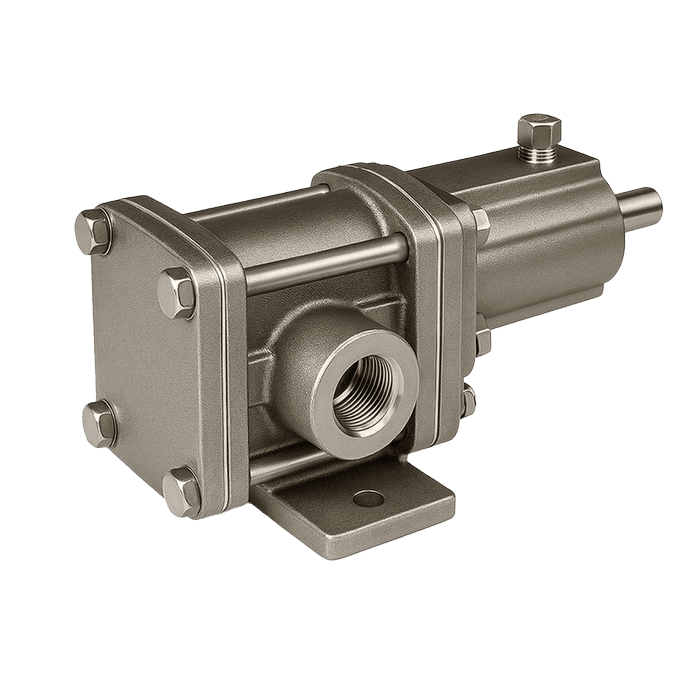

Chemsteel Gear Pump | S207 | (OBS20716CA)
SKU: obs20716ca
SKU: obs20716ca
Key Features:
- Material: 316 stainless steel or Alloy C housing, shaft, and gears (also available in PTFE, PPS, and PEEK)
- Port Size: 1/2" FNPT or BSPT
- Seal Type: Lip, packing, or mechanical seal options
- Max Flow Rate: 4 GPM @ 1750 RPM
- Displacement: 11.2 cc/rev
- Max Differential Pressure: 150 PSI
- Max System Pressure: 300 PSI
- Max Speed: 1800 RPM
- Temperature Range: -50°F to 450°F
- NPSHR: 4 feet @ 1750 RPM
- Weight: 6 lbs
- Mounting: Close-coupled or pedestal; compatible with NEMA and IEC motor frames
Lead times temporarily extended to 12 weeks.
$4,422.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBS20716CA is a Chemsteel Series S207 metallic gear pump engineered for precision fluid handling in highly corrosive and high-purity applications. Featuring 1/2" FNPT ports and a rugged stainless steel construction, this positive displacement pump delivers reliable, bi-directional flow with minimal system contamination.
Designed for demanding chemical processing environments, the S207 pump includes helical gears for quiet operation, a three-section O-ring sealed housing for easy maintenance, and slotted bearings to ensure optimal lubrication and wear resistance. It is compatible with a wide range of seal types and material combinations to suit specific chemical compatibility needs.
Recommended Applications:
Ideal for metering and transferring corrosive chemicals, solvents, polymers, and other specialty fluids in industrial, laboratory, and OEM systems requiring high precision, chemical resistance, and compact design.
