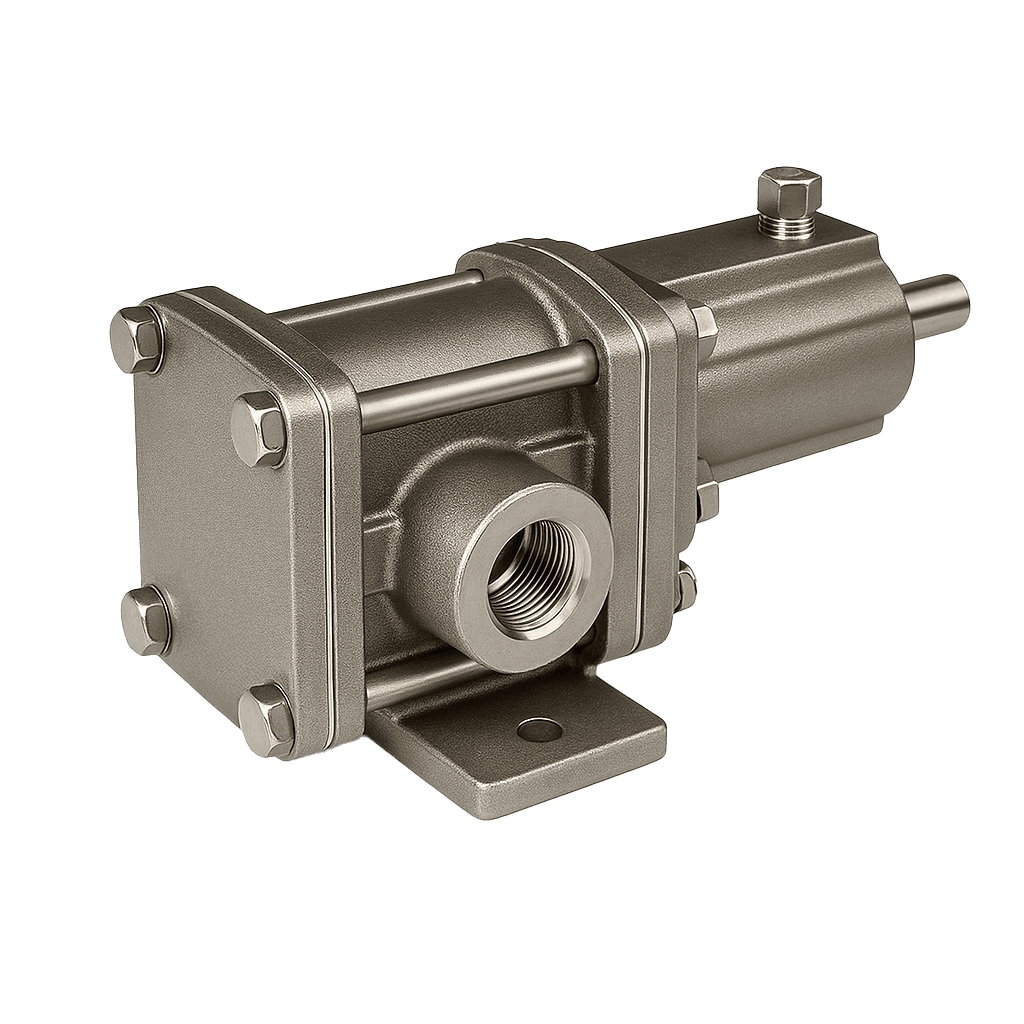

Chemsteel Gear Pump | S207 | (OBS20716CB)

Art. No.: ob_obs20716cb

Key Features:

Material: 316 Stainless Steel housing, shaft, and gears
Port Size: 1/2" FNPT or BSPT
Flow Rate: Up to 4 GPM (15.1 LPM)
Pressure: 150 PSI differential, 300 PSI system
Temperature Range: -50°F to 450°F (-46°C to 232°C)
Seal Type: Mechanical
Bearings: Carbon or PTFE
Mounting: NEMA/IEC compatible motor frame

Lead times temporarily extended to 20 weeks.

$3,140.79

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Request a Quote

The OBS20716CB is a Chemsteel™ S207 metallic gear pump engineered for precise, leak-free transfer of corrosive and high-purity fluids. Constructed from 316 stainless steel, it features a close-coupled design with a mechanical seal, slotted bearings, and helical gears for quiet, efficient operation. The pump delivers up to 4 GPM at 1750 RPM with a maximum differential pressure of 150 PSI.

This model includes 1/2" FNPT ports and operates across a wide temperature range from -50°F to 450°F. It is ideal for OEM and industrial systems requiring contamination-free fluid handling under pressure.

Recommended Applications:
Ideal for chemical processing, pharmaceuticals, and OEM systems requiring high-purity, leak-free fluid transfer under pressure.

Recommended Parts

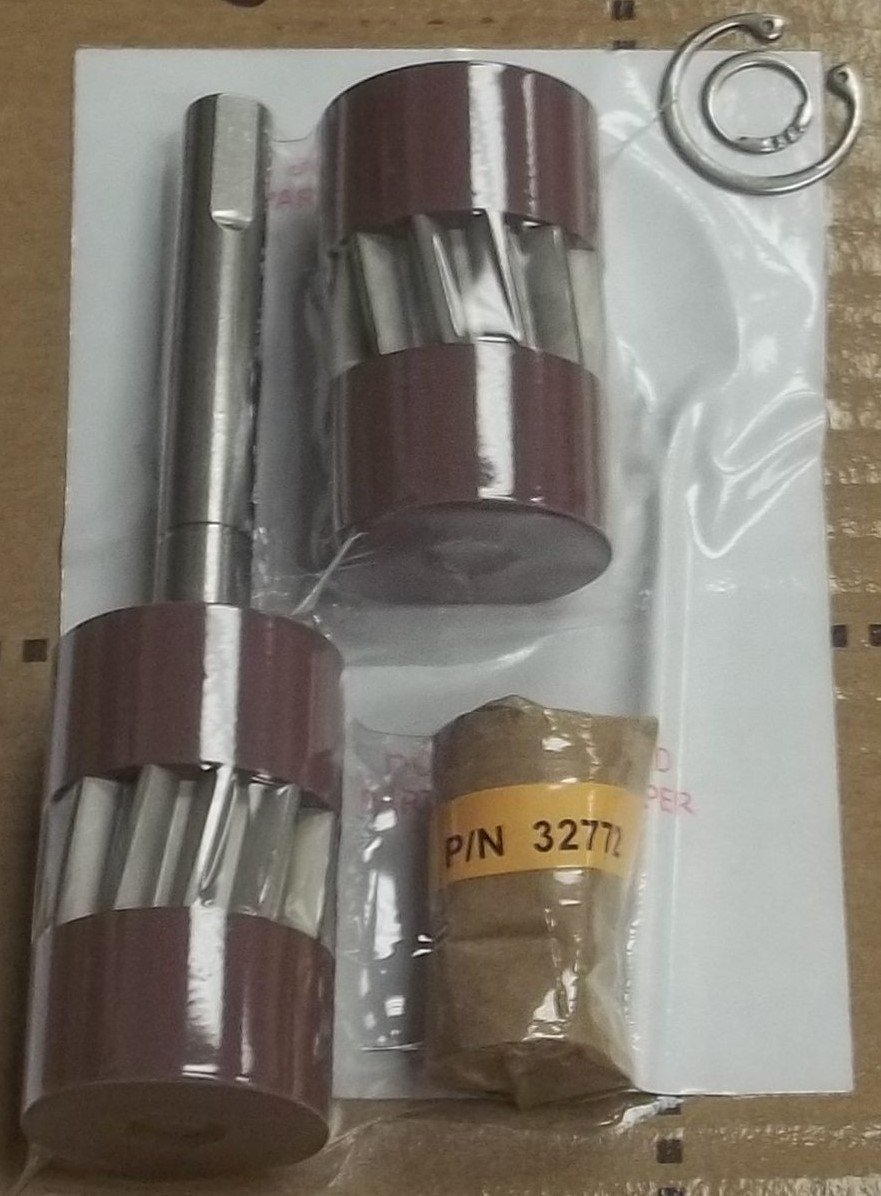

Chemkit, Repair Kit for OBS20716CB | (OBS20716CBK)
