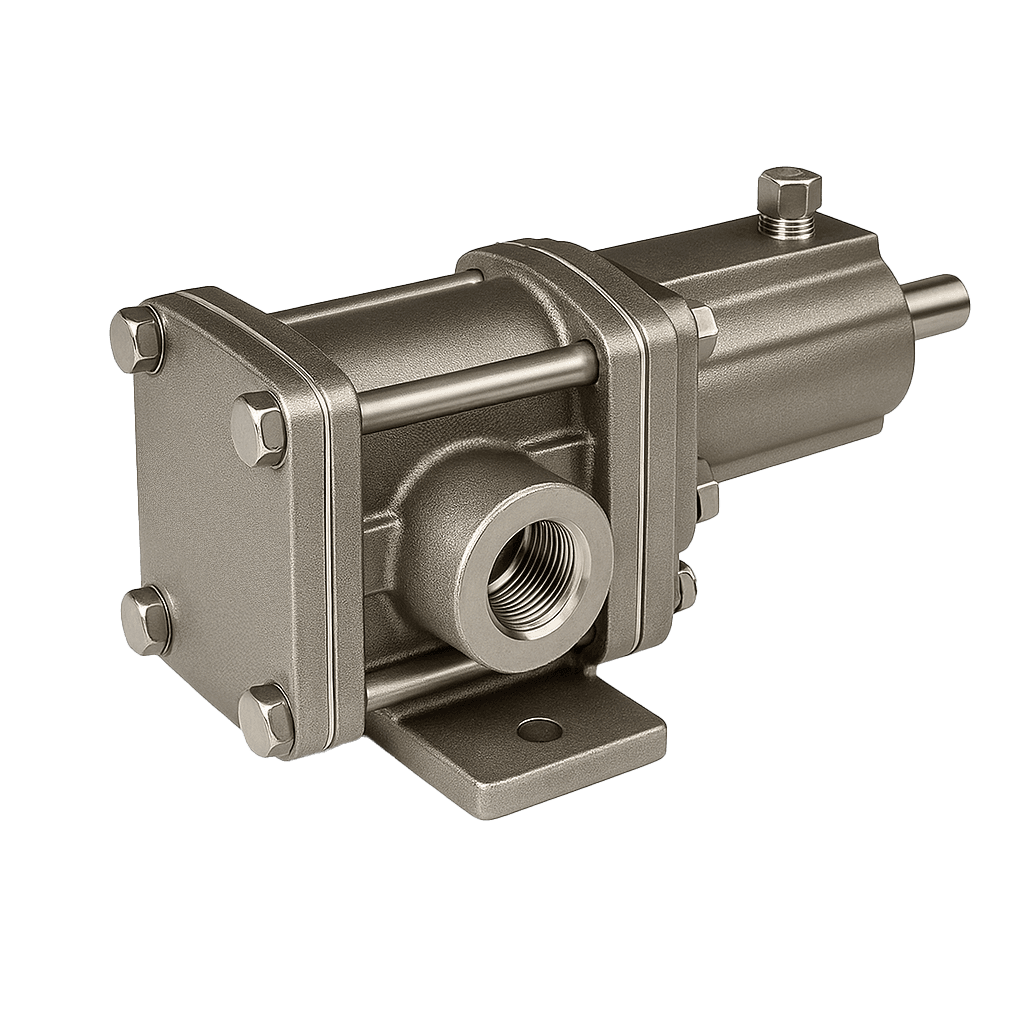

Chemsteel Gear Pump | S214 | (OBS21416CA)
SKU: obs21416ca
SKU: obs21416ca
Key Features:
- Material: 316 Stainless Steel or Alloy C housing
- Port Size: 1/2" FNPT or BSPT
- Max Flow: 8 GPM (30.3 LPM) at 1750 RPM
- Displacement: 22.2 cc/rev
- Max Differential Pressure: 150 PSI (10.3 bar)
- Max System Pressure: 300 PSI (20.7 bar)
- Max Speed: 1800 RPM
- Temperature Range: -50°F to 450°F (-46°C to 232°C)
- NPSHR: 4 feet (1.2 meters)
- Seal Options: Lip, packing, mechanical
- Weight: Approx. 13 lbs (5.9 kg)
Lead times temporarily extended to 12 weeks.
$5,033.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBS21416CA is a Chemsteel™ S214 metallic gear pump engineered for precision fluid transfer in chemical, pharmaceutical, and industrial applications. Designed to handle both common and highly corrosive liquids, this pump offers exceptional chemical compatibility, durability, and performance.
With a rugged three-piece stainless or Alloy C housing, the S214 pump features helical gears for quiet operation, slotted bearings for optimal lubrication, and hydraulic porting to reduce axial thrust and wear. Its bi-directional flow capability and wide temperature range make it ideal for demanding environments.
Recommended Applications:
Ideal for transferring corrosive, high-purity, or temperature-sensitive fluids in chemical processing, pharmaceutical manufacturing, and industrial systems. Suitable for OEM integration and systems requiring compact, high-performance gear pumps.
