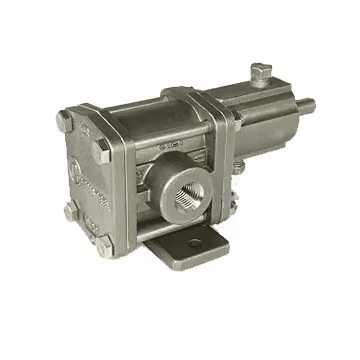

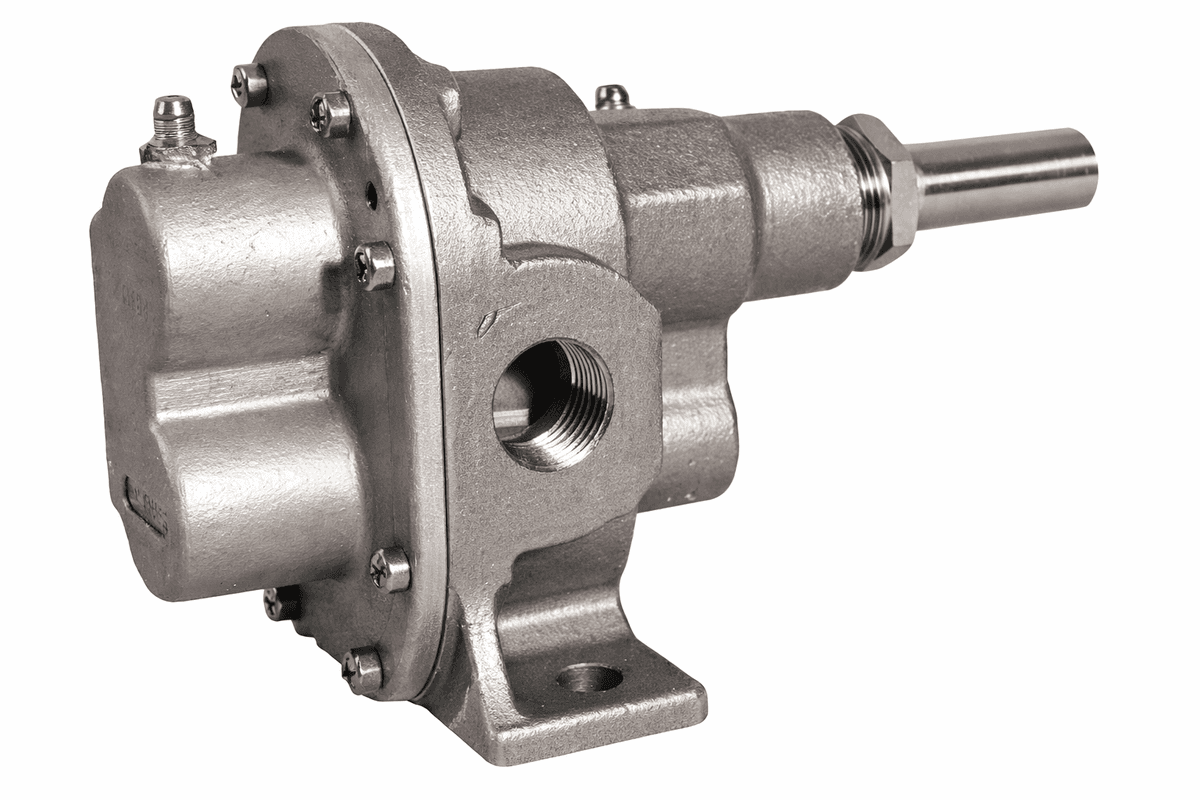

Pedestal Rotary Gear Pump | S4000L | (OBS4000L)
SKU: obs4000l
SKU: obs4000l
Key Features:
- Material: Investment-cast stainless steel housing, stainless steel gears and shafts
- Port Size: 1/2" NPT
- Seal Type: Synthetic braided compression packing with Teflon® dispersion; Viton® O-ring
- Max Pressure: Up to 150 PSI (lubricating fluids); 80 PSI typical for syrup applications
- Max Speed: 1725 RPM
- Temperature Range: Up to 220°F for syrup; 140°F for hot water flushing
- Bearings: Graphitized silicon carbide, self-lubricating
- Mounting: Pedestal base for direct or belt drive
- Suction Lift: Up to 20 feet
- Drive Options: Flexible coupling or pulley; regreasing recommended for sap applications
Lead times temporarily extended to 12 weeks.
$3,130.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBS4000L is a stainless steel pedestal-mounted rotary gear pump engineered for demanding fluid transfer applications, particularly in food-grade and maple syrup processing systems. Featuring 1/2" NPT ports and a rugged investment-cast stainless steel housing, this positive displacement pump delivers reliable, quiet, and efficient operation.
Designed as a direct stainless steel replacement for the N4000L bronze model, the OBS4000L includes hardened stainless steel shafts, stainless steel gears, and graphitized silicon carbide sleeve bearings. It is fully compliant with ""biofood"" standards and optimized for handling abrasive sugar sand and filter aid in syrup filtration systems.
Recommended Applications:
Ideal for maple syrup filter press systems, food-grade fluid transfer, and other sanitary applications requiring corrosion resistance, quiet operation, and the ability to handle abrasive particulates. Not suitable for fluids with suspended solids unless specifically designed for such use.
Designed as a direct stainless steel replacement for the N4000L bronze model, the OBS4000L includes hardened stainless steel shafts, stainless steel gears, and graphitized silicon carbide sleeve bearings. It is fully compliant with ""biofood"" standards and optimized for handling abrasive sugar sand and filter aid in syrup filtration systems.
Recommended Applications:
Ideal for maple syrup filter press systems, food-grade fluid transfer, and other sanitary applications requiring corrosion resistance, quiet operation, and the ability to handle abrasive particulates. Not suitable for fluids with suspended solids unless specifically designed for such use.
