Temperature Range: -50°F to 450°F (-46°C to 232°C)
Construction: Stainless Steel or Alloy C housing
Gears: Available in metal or high-performance plastics
Seals: Lip, packing, or mechanical options
Ports: 3/4" FNPT or BSPT
Mounting: NEMA/IEC compatible, metric hardware
Lead times temporarily extended to 16 weeks.
$4,540.00
Prices for items exclude shipping costs and taxes.
Depending on your delivery address, taxes may vary at Checkout.

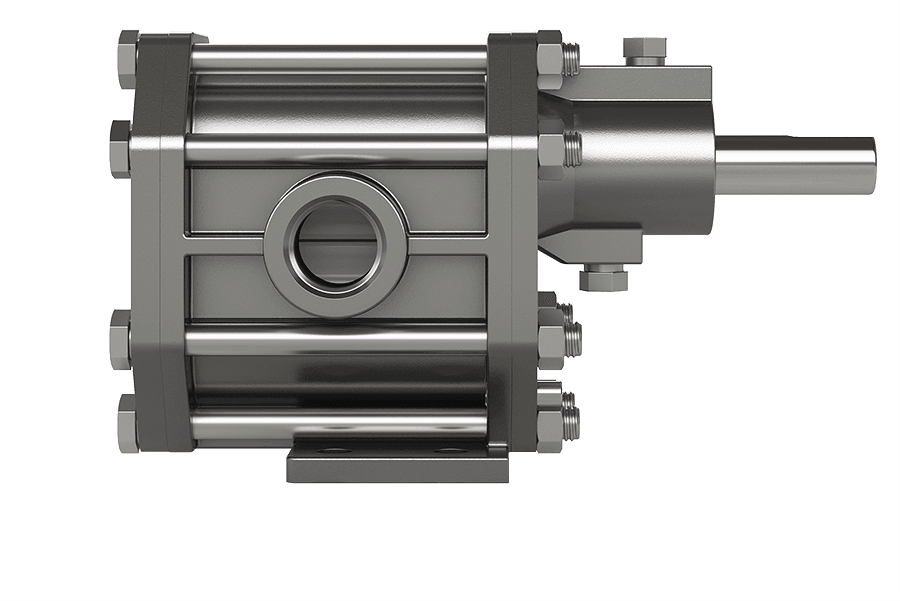

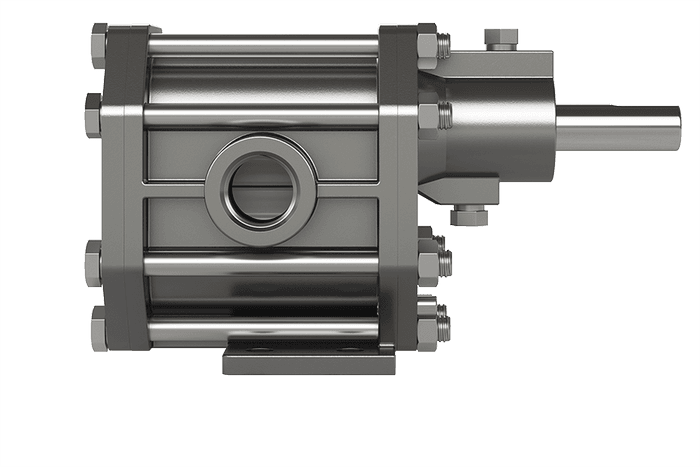

The Chemsteel™ S417 is a precision-engineered metallic gear pump designed for handling corrosive and high-purity fluids in demanding industrial environments. With a maximum flow of 10 GPM and pressure up to 150 PSI, it features a rugged stainless steel or Alloy C housing, helical gears for quiet operation, and bi-directional flow capability. The pump supports fluid temperatures from -50°F to 450°F and includes slotted bearings, hydraulic porting, and elastic memory seals to ensure long service life and minimal maintenance.
Recommended Applications:
Ideal for chemical processing, pharmaceuticals, food and beverage, and OEM systems requiring precise, contamination-free fluid transfer.
