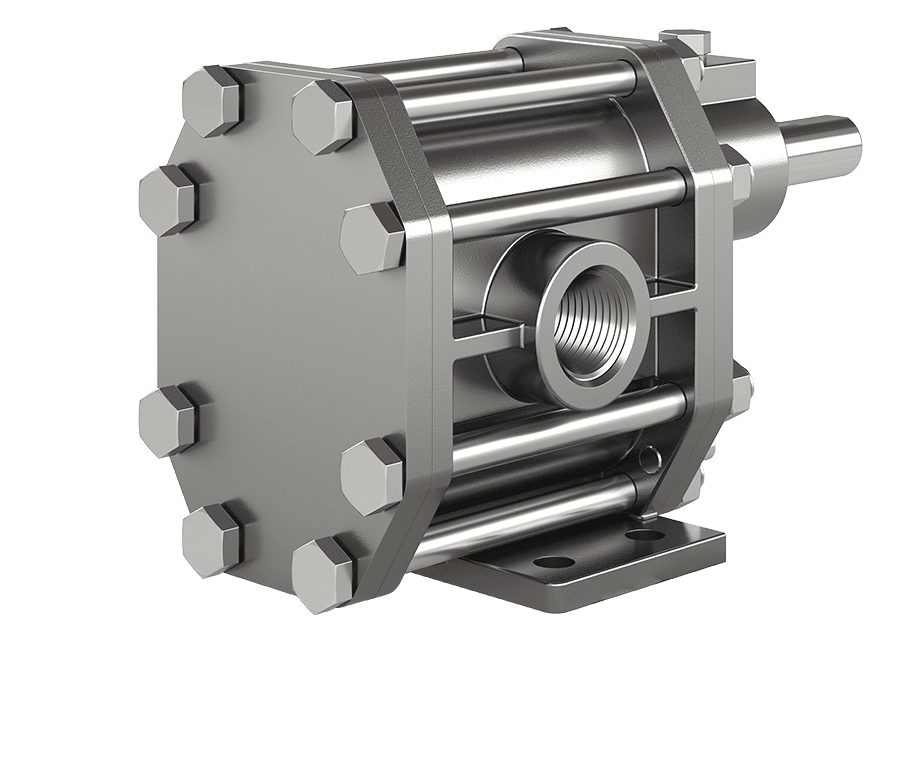

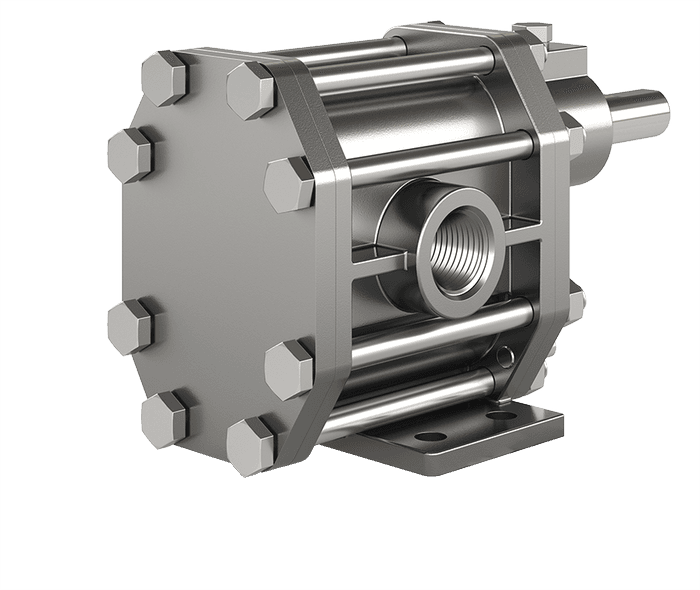

Chemsteel Gear Pump with Motor 1 1/2 Hp, 230/460 | S417 | (OBS41716CAC1-T97)
SKU: obs41716cac1-t97
SKU: obs41716cac1-t97
Key Features:
- Pump Material: 316 Stainless Steel or Alloy C housing, with optional PTFE, Ryton®, or PEEK gears
- Port Size: 3/4" FNPT or BSPT
- Max Flow: 10 GPM (37.9 LPM) at 1750 RPM
- Max Differential Pressure: 150 PSI (10.3 bar)
- Max System Pressure: 225 PSI (15.5 bar)
- Max Speed: 1800 RPM
- Temperature Range: -50°F to 450°F (-46°C to 232°C)
- NPSHR: 6 feet (1.8 meters)
- Seal Options: Lip, packing, mechanical
- Motor: 1.5 HP, 230/460V, 3-phase, close-coupled
- Weight: Approx. 8 lbs (pump only)
Lead times temporarily extended to 12 weeks.
$7,778.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBS41716CAC1-T97 is a Chemsteel™ close-coupled gear pump system designed for precision fluid handling in demanding chemical and industrial environments. Featuring a 1.5 HP motor (230/460V, 3-phase) and a corrosion-resistant metallic S417 pump head, this unit delivers reliable, high-pressure performance with exceptional chemical compatibility.
The S417 pump is engineered with helical gears for quiet operation, slotted bearings for optimal lubrication, and hydraulic porting to reduce axial thrust and wear. Its rugged three-piece construction with O-ring seals ensures leak-free operation and easy maintenance. Designed for bi-directional flow and high-temperature applications, this pump is ideal for transferring aggressive or high-purity fluids.
Recommended Applications:
Ideal for chemical processing, pharmaceutical, food-grade, and industrial systems requiring precise, contamination-free fluid transfer. Suitable for corrosive, high-purity, or temperature-sensitive liquids.
