Chemsteel Gear Pump | S417 | (OBS41716CB)

Art. No.: ob_obs41716cb

Key Features:

Material: 316 Stainless Steel or Alloy C housing
Port Size: 3/4" FNPT or BSPT
Max Flow: 10 GPM (37.9 LPM) at 1750 RPM
Displacement: 27.0 cc/rev
Max Differential Pressure: 150 PSI (10.3 bar)
Max System Pressure: 225 PSI (15.5 bar)
Max Speed: 1800 RPM
Temperature Range: -50°F to 450°F (-46°C to 232°C)
NPSHR: 6 feet (1.8 meters)
Seal Options: Lip, packing, mechanical
Weight: Approx. 8 lbs (3.6 kg)

Lead times temporarily extended to 20 weeks.

$3,831.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.

Request a Quote

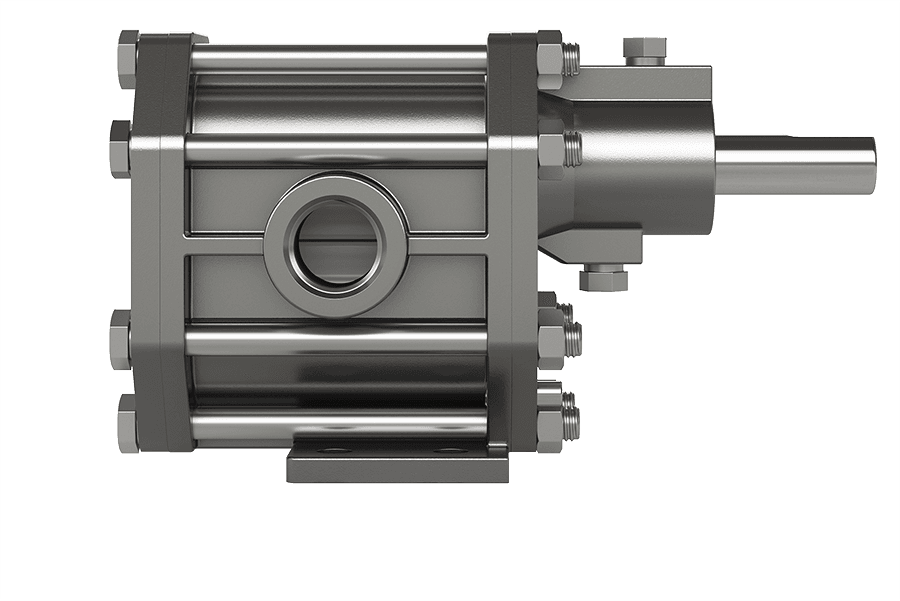

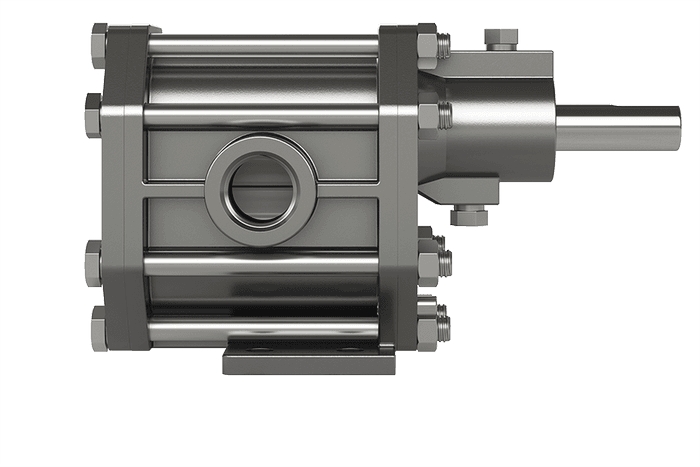

The OBS41716CB is a Chemsteel™ S417 metallic gear pump engineered for precise and reliable fluid transfer in chemical processing, pharmaceutical, and industrial applications. Designed to handle both common and highly corrosive liquids, this pump offers exceptional chemical compatibility, durability, and performance.

Featuring a rugged three-piece stainless or Alloy C housing, the S417 pump includes helical gears for quiet operation, slotted bearings for optimal lubrication, and hydraulic porting to reduce axial thrust and wear. Its bi-directional flow capability and wide temperature range make it ideal for demanding environments.

Recommended Applications:
Ideal for transferring corrosive, high-purity, or temperature-sensitive fluids in chemical processing, pharmaceutical manufacturing, and industrial systems. Suitable for OEM integration and systems requiring compact, high-performance gear pumps.

Recommended Parts

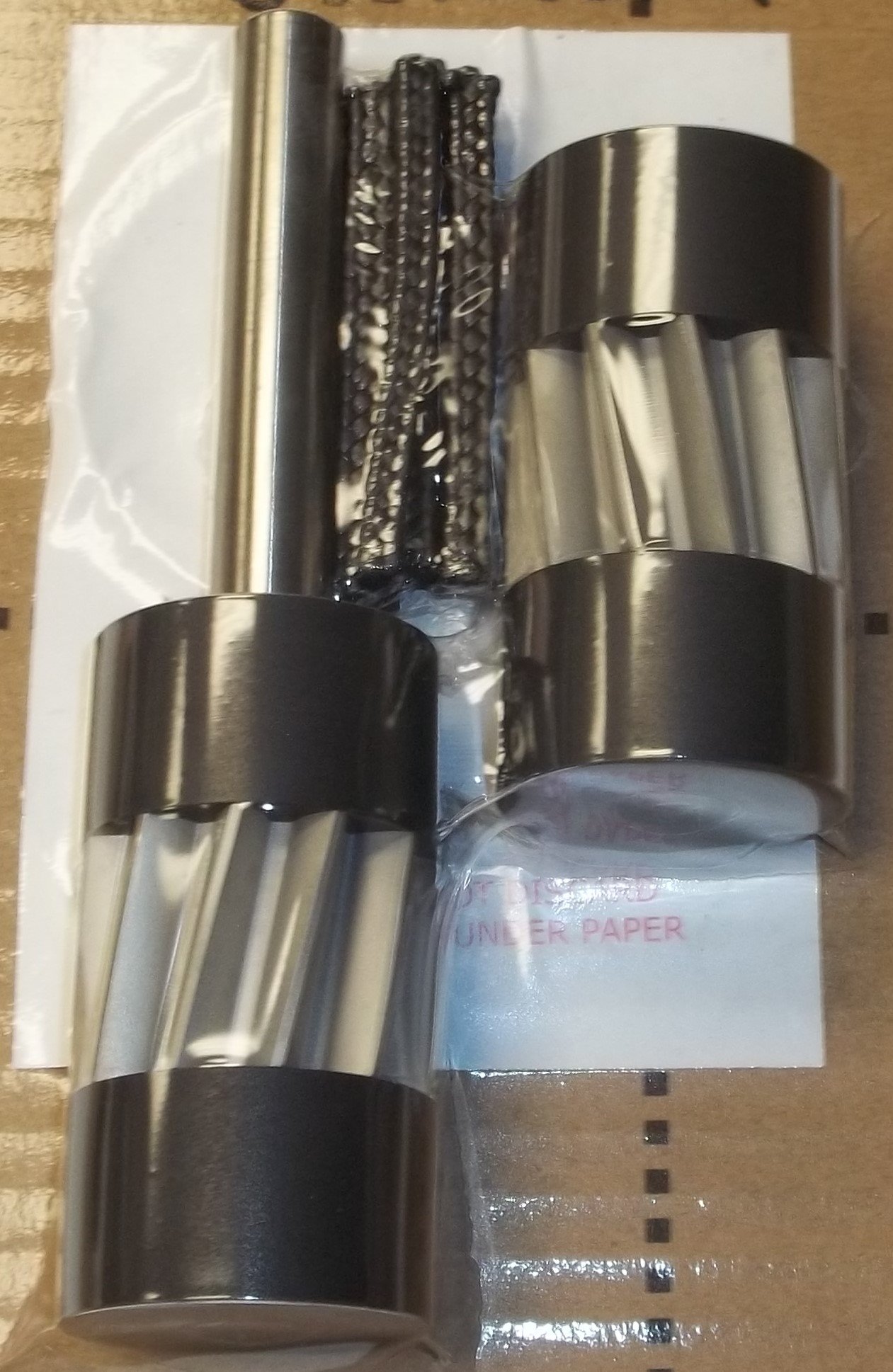

Chemkit, Repair Kit for OBS41716CB | (OBS41716CBK)
