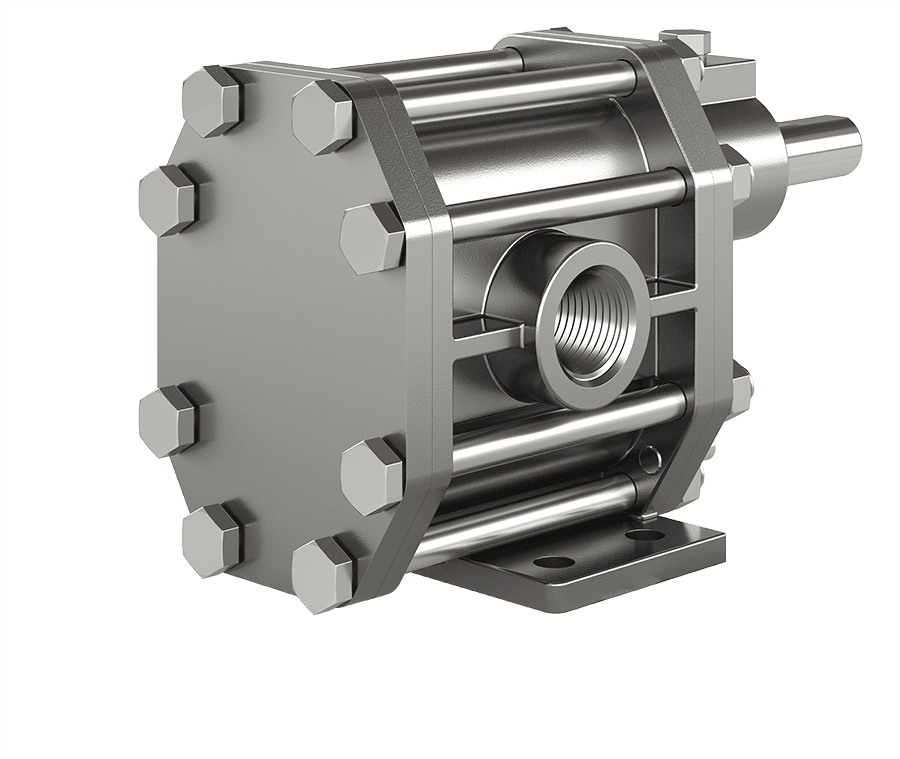

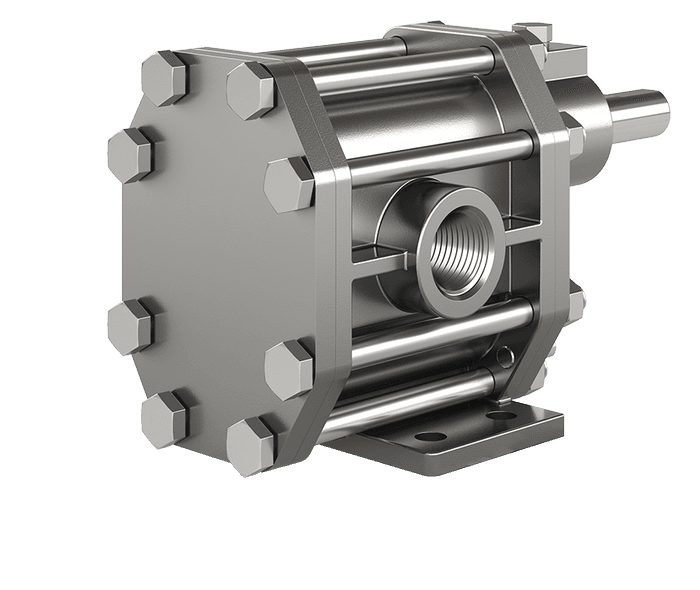

Chemsteel Gear Pump | S417 | (OBS41717PA)
Chemsteel Gear Pump | S417 | (OBS41717PA)
Art. No.: ob_obs41717pa
Art. No.: ob_obs41717pa
Key Features:
- Material: 316 stainless steel housing and shaft
- Port Size: 3/4" FNPT or BSPT
- Seal Type: Mechanical seal (various options available)
- Max Flow: 10 GPM (37.9 LPM)
- Displacement: 27.0 cc/rev
- Max Differential Pressure: 150 PSI
- Max System Pressure: 225 PSI
- Max Speed: 1800 RPM
- Temperature Range: -50°F to 450°F (-46°C to 232°C)
- NPSHR: 6 feet at 1750 RPM
- Mounting: NEMA or IEC close-coupled adapters
- Bearings: Carbon or PTFE
- Drive: Bi-directional operation supported
Lead times temporarily extended to 20 weeks.
$3,492.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.The OBS41717PA is a Chemsteel™ S417 series metallic gear pump designed for high-performance transfer of corrosive, viscous, or high-purity fluids. Built with precision-machined 316 stainless steel components, this pump is ideal for demanding chemical processing and OEM applications.
With a maximum flow of 10 GPM at 1750 RPM and pressure capabilities up to 150 PSI differential (225 PSI system), the S417 offers robust, bi-directional operation and exceptional chemical compatibility. Its three-piece, O-ring sealed construction ensures long service life and easy maintenance.
Recommended Applications:
Ideal for chemical processing, pharmaceutical, food-grade, and OEM systems requiring corrosion resistance, precise flow control, and high-pressure capability.
With a maximum flow of 10 GPM at 1750 RPM and pressure capabilities up to 150 PSI differential (225 PSI system), the S417 offers robust, bi-directional operation and exceptional chemical compatibility. Its three-piece, O-ring sealed construction ensures long service life and easy maintenance.
Recommended Applications:
Ideal for chemical processing, pharmaceutical, food-grade, and OEM systems requiring corrosion resistance, precise flow control, and high-pressure capability.
