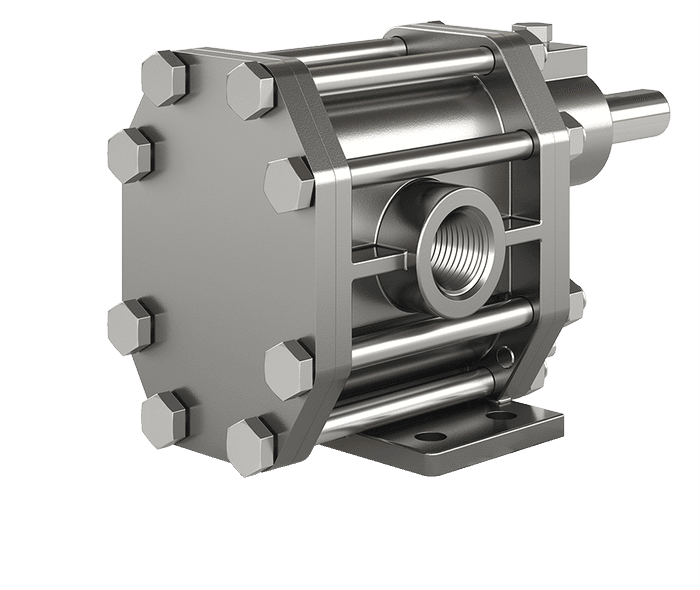

Chemsteel Gear Pump | S417 | (OBS4171BCZ-C1)

Art. No.: ob_obs4171bcz-c1

Key Features:

Material: 316 Stainless Steel housing, shaft, and gears
Port Size: 3/4" FNPT or BSPT
Flow Rate: Up to 10 GPM (37.9 LPM)
Pressure: 150 PSI differential, 225 PSI system
Temperature Range: -50°F to 450°F (-46°C to 232°C)
Seal Type: Mechanical
Bearings: Carbon or PTFE
Mounting: NEMA/IEC compatible motor frame

Lead times temporarily extended to 20 weeks.

$4,333.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.

Request a Quote

The OBS4171BCZ-C1 is a Chemsteel™ S417 metallic gear pump engineered for high-purity and corrosive fluid transfer in industrial and OEM applications. Constructed from 316 stainless steel, it features a close-coupled design with a mechanical seal, slotted bearings, and helical gears for smooth, quiet operation. The pump delivers up to 10 GPM at 1750 RPM with a maximum differential pressure of 150 PSI.

This model includes 3/4" FNPT ports and operates across a wide temperature range from -50°F to 450°F. It is ideal for systems requiring bi-directional flow, precise metering, and long service life.

Recommended Applications:
Ideal for chemical processing, pharmaceuticals, and OEM systems requiring high-purity, leak-free fluid transfer under pressure.

Recommended Parts

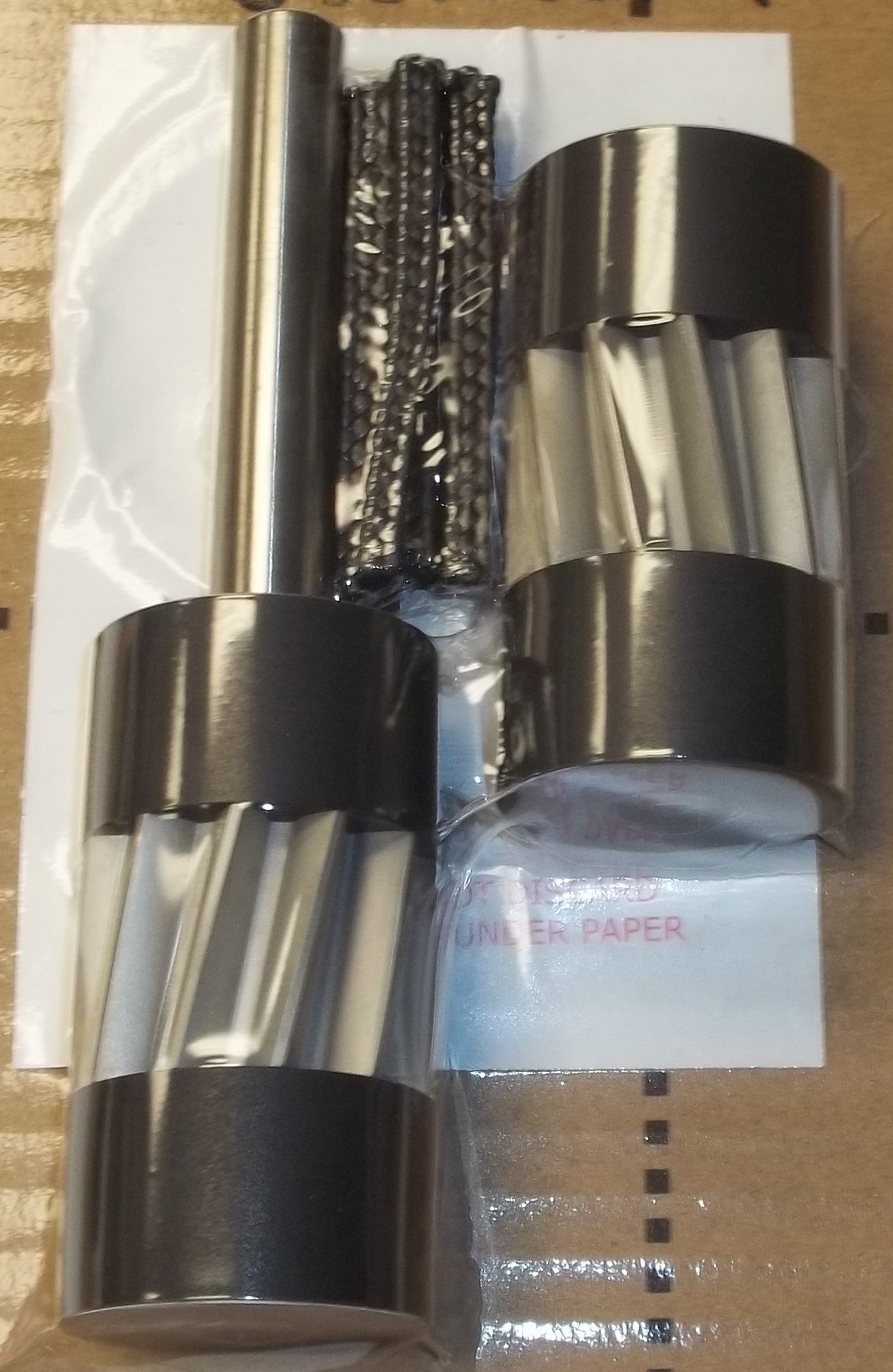

Chemkit, Repair Kit for OBS4171BCZ | (OBS4171BCZK)
