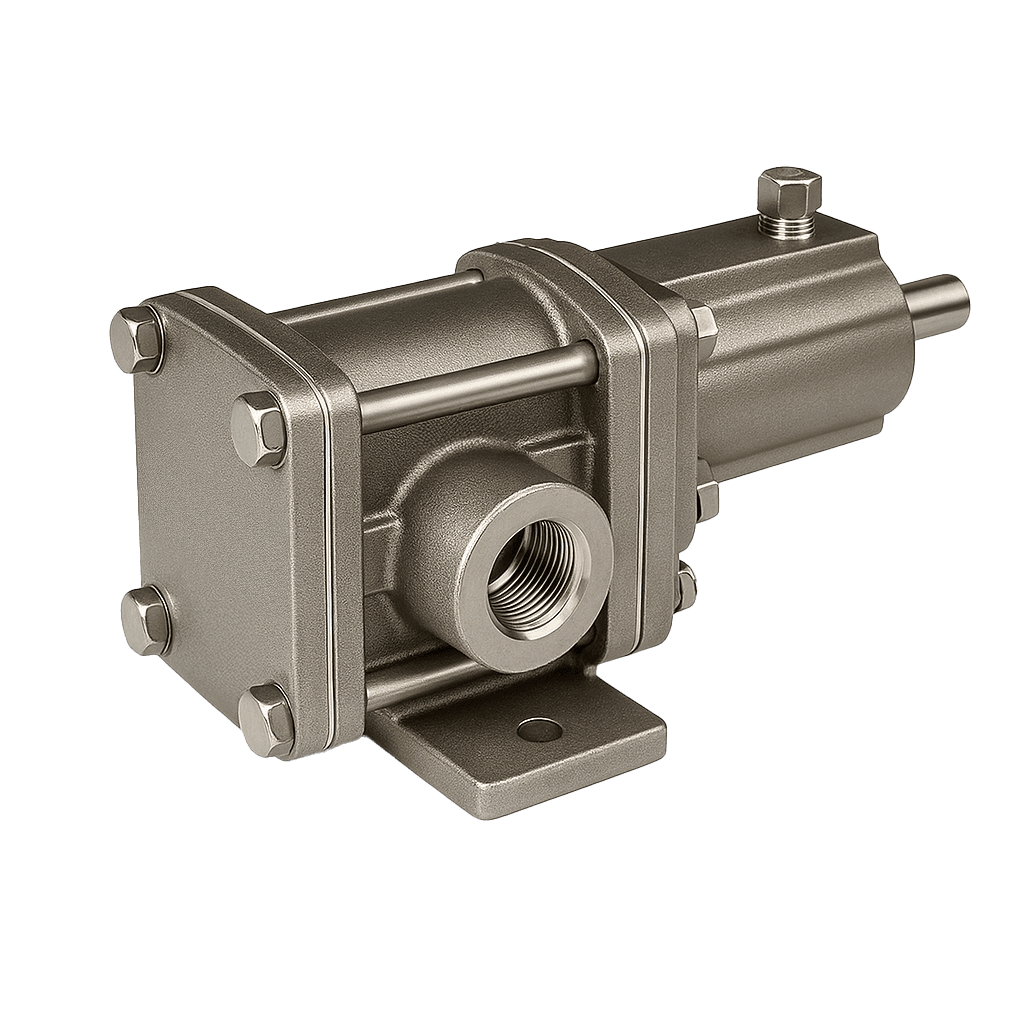

Chemsteel Gear Pump | S935 | (OBS93516CA)
SKU: obs93516ca
SKU: obs93516ca
Key Features:
- Material: 316 stainless steel or Alloy C housing, shaft, and gears (also available in PTFE, Ryton®, and PEEK®)
- Port Size: 1 1/2" FNPT or BSPT

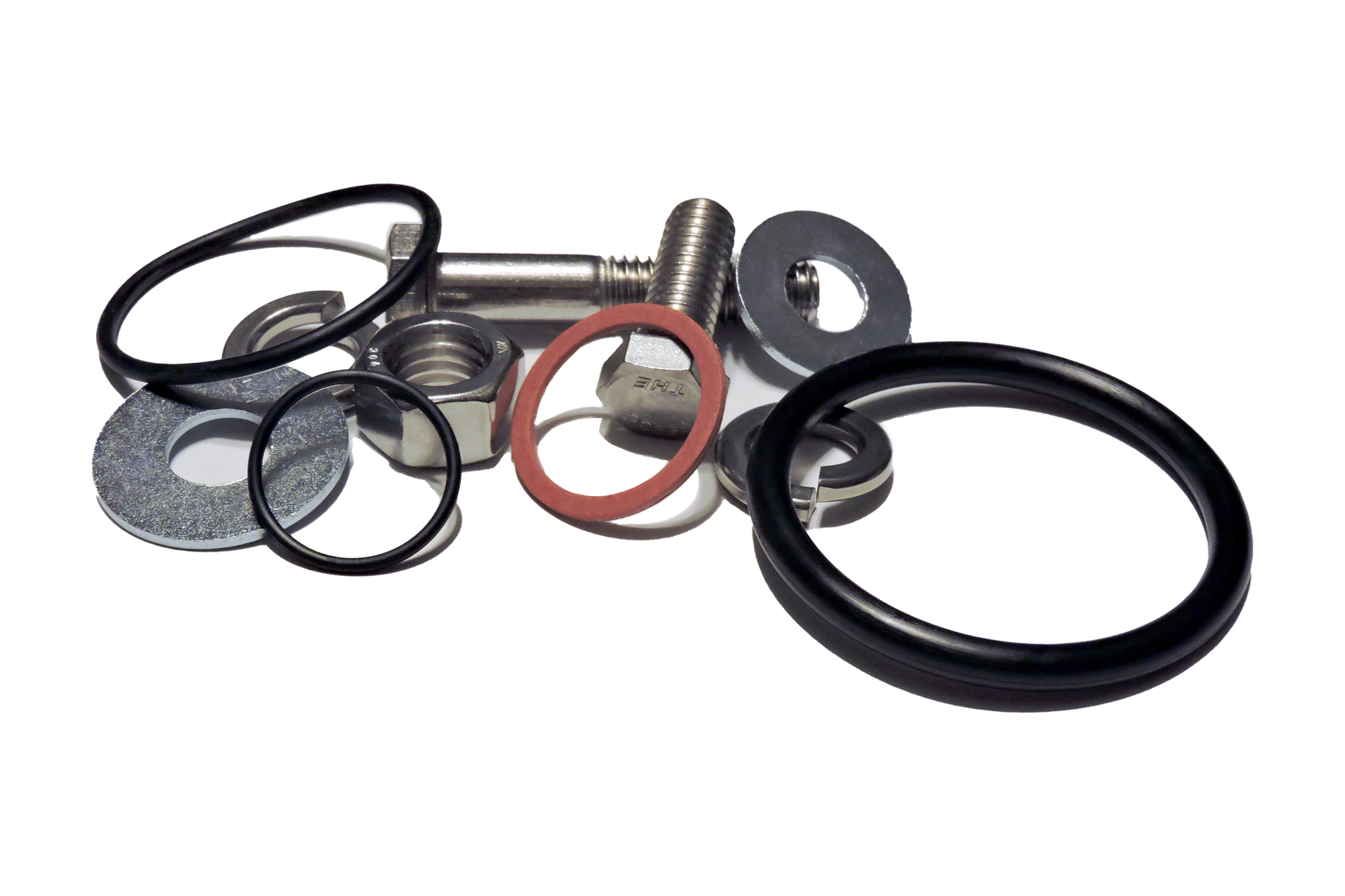

- Seal Type: Lip, packing, or mechanical seal options
- Max Flow Rate: 23 GPM @ 1750 RPM
- Displacement: 57.8 cc/rev
- Max Differential Pressure: 150 PSI
- Max System Pressure: 225 PSI
- Max Speed: 1800 RPM
- Temperature Range: -50°F to 450°F
- Weight: 10 lbs
- Mounting: Close-coupled or pedestal; compatible with NEMA and IEC motor frames
Lead times temporarily extended to 12 weeks.
$6,982.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBS93516CA is a Chemsteel Series S935 metallic gear pump engineered for high-capacity, high-precision fluid transfer in corrosive and demanding environments. Featuring 1 1/2" FNPT ports and a rugged stainless steel or Alloy C construction, this positive displacement pump delivers reliable, bi-directional flow with exceptional chemical resistance.
Designed for industrial and OEM applications, the S935 pump includes helical gears for quiet operation, a three-section O-ring sealed housing for easy maintenance, and slotted bearings to ensure optimal lubrication and wear resistance. Its modular design supports a wide range of seal types and material combinations to suit specific chemical compatibility needs.
Recommended Applications:
Ideal for metering and transferring corrosive chemicals, solvents, polymers, and other specialty fluids in industrial, chemical processing, and OEM systems requiring high flow, chemical resistance, and compact design.
Designed for industrial and OEM applications, the S935 pump includes helical gears for quiet operation, a three-section O-ring sealed housing for easy maintenance, and slotted bearings to ensure optimal lubrication and wear resistance. Its modular design supports a wide range of seal types and material combinations to suit specific chemical compatibility needs.
Recommended Applications:
Ideal for metering and transferring corrosive chemicals, solvents, polymers, and other specialty fluids in industrial, chemical processing, and OEM systems requiring high flow, chemical resistance, and compact design.
