Chemsteel Gear Pump | SM207 | (OBSM20716CW-M1)

Art. No.: ob_obsm20716cw-m1

Key Features:

Material: 316 Stainless Steel housing, shaft, and gears
Port Size: 3/4" FNPT or BSPT
Flow Rate: Up to 6 GPM (22.7 LPM)
Pressure: 100 PSI differential, 225 PSI system
Temperature Range: -50°F to 450°F (-46°C to 232°C)
Seal Type: Magnetic drive (seal-less)
Bearings: Carbon or PTFE
Mounting: NEMA/IEC compatible motor frame

Lead times temporarily extended to 20 weeks.

$9,053.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.

Request a Quote

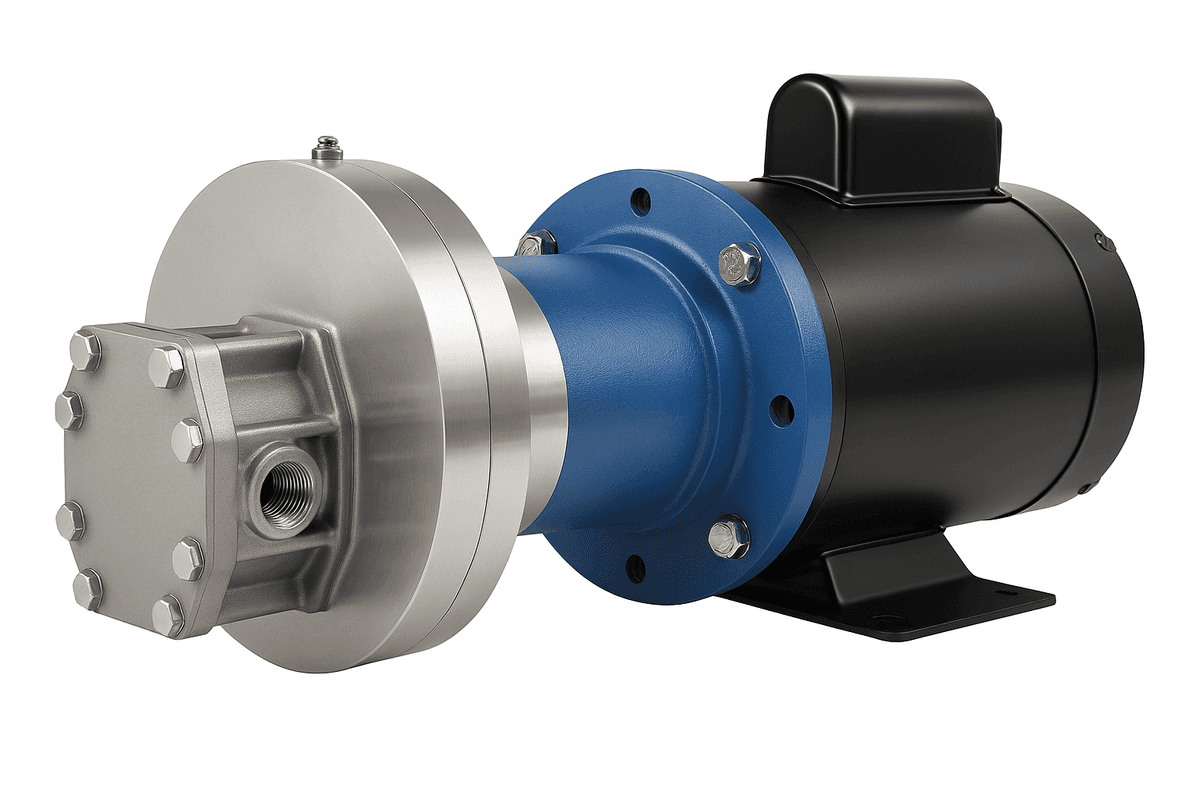

The OBSM20716CW-M1 is a Chemsteel™ SM207 gear pump with a close-coupled motor, designed for precise, leak-free transfer of corrosive and high-purity fluids. Constructed from 316 stainless steel, it features a seal-less magnetic drive, slotted bearings, and helical gears for quiet, efficient operation. The pump delivers up to 6 GPM at 1750 RPM with a maximum differential pressure of 100 PSI.

This model includes 3/4" FNPT ports and operates across a wide temperature range from -50°F to 450°F. It is ideal for OEM and industrial systems requiring contamination-free fluid handling.

Recommended Applications:
Ideal for chemical processing, pharmaceuticals, and OEM systems requiring high-purity, leak-free fluid transfer under pressure.

Recommended Parts

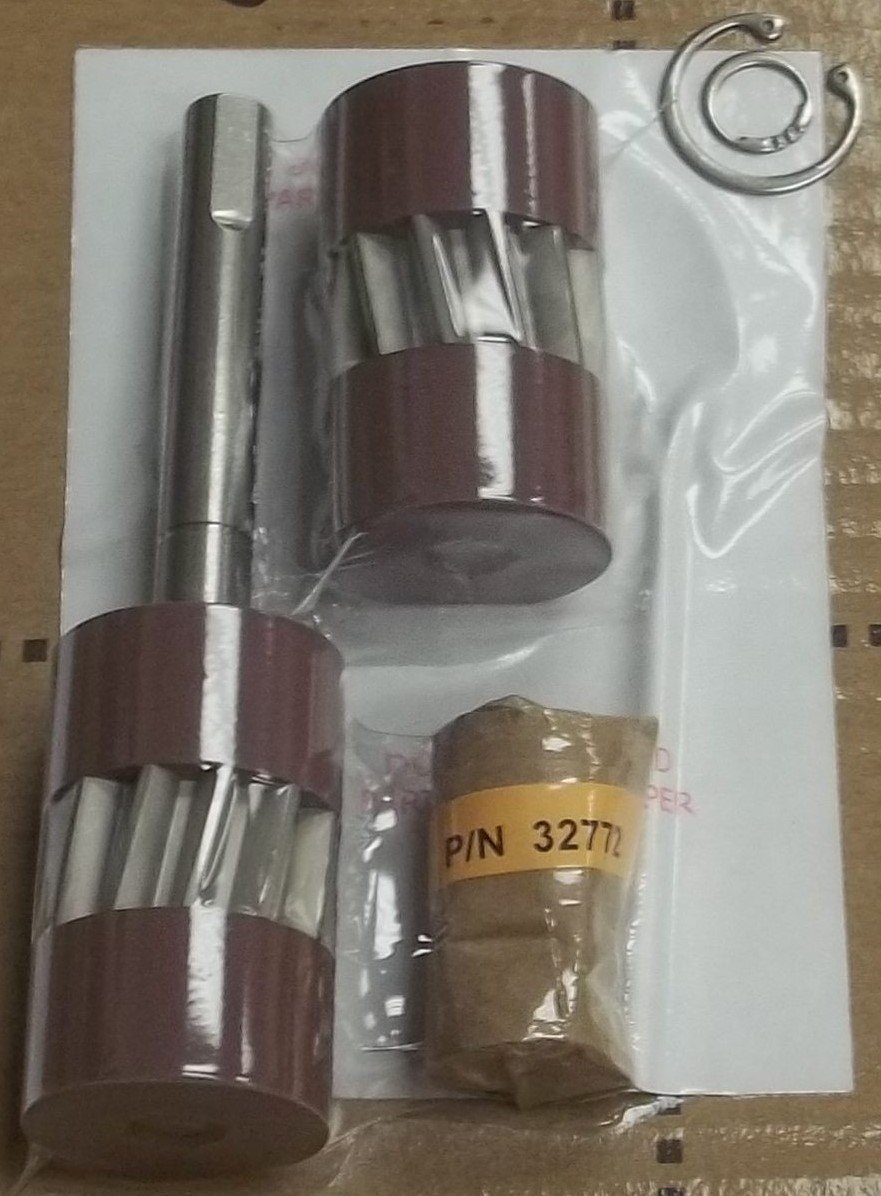

Chemkit, Repair Kit | (OBSM20716CWK)
