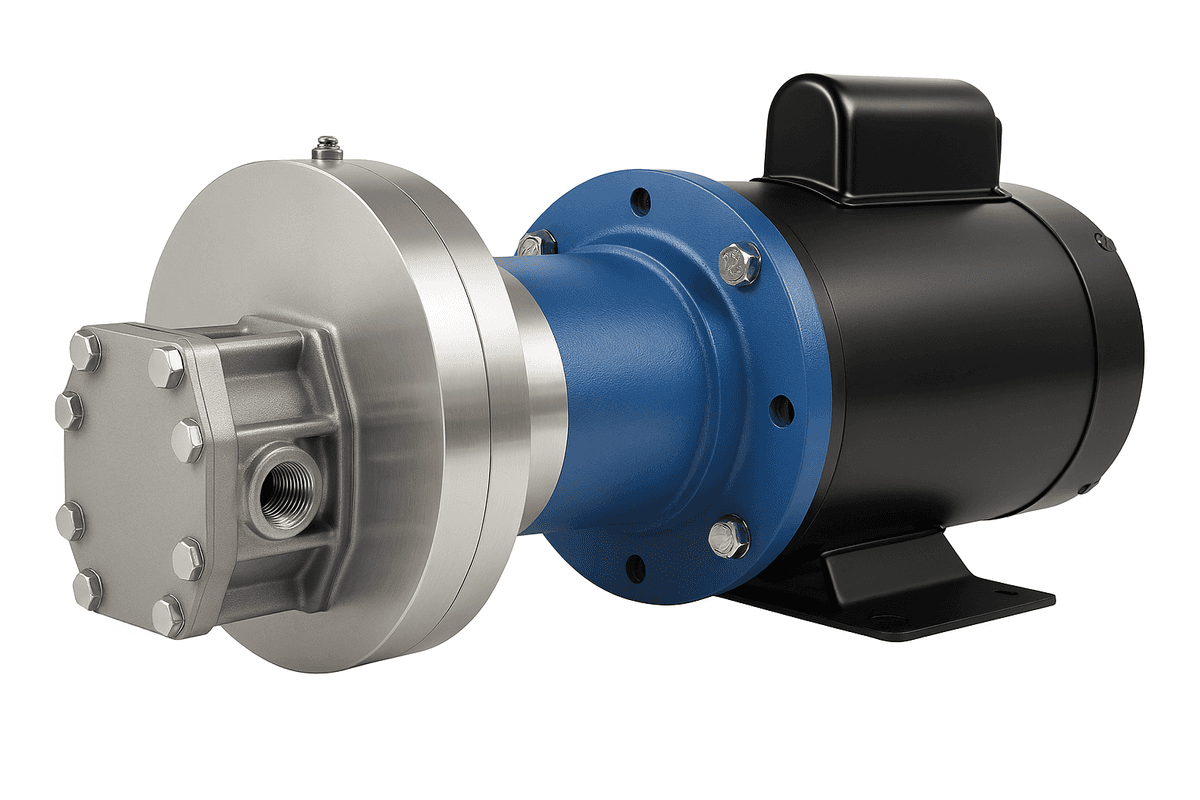

Chemsteel Gear Pump with Motor | SM417 | (OBSM41716CW-T97)
Chemsteel Gear Pump with Motor | SM417 | (OBSM41716CW-T97)
Art. No.: ob_obsm41716cw-t97
Art. No.: ob_obsm41716cw-t97
Key Features:
- Material: 316 Stainless Steel housing, shaft, and gears
- Port Size: 3/4" FNPT or BSPT
- Flow Rate: Up to 10 GPM (37.9 LPM)
- Pressure: 110 PSI differential, 225 PSI system
- Temperature Range: -50°F to 450°F (-46°C to 232°C)
- Seal Type: Magnetic drive (seal-less)
- Bearings: Carbon or PTFE
- Mounting: NEMA/IEC compatible motor frame
Lead times temporarily extended to 20 weeks.
$11,887.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at Checkout.The OBSM41716CW-T97 is a Chemsteel™ SM417 gear pump with an integrated motor, engineered for precise and reliable transfer of corrosive and high-purity fluids. Constructed with 316 stainless steel and designed for bi-directional operation, it delivers up to 10 GPM at 1750 RPM with a maximum differential pressure of 110 PSI. The pump includes 3/4" FNPT ports and operates across a wide temperature range from -50°F to 450°F.
This close-coupled magnetic drive model features slotted bearings, hydraulic porting, and helical gears for quiet, efficient performance. It is ideal for OEM and industrial systems requiring contamination-free fluid handling.
Recommended Applications:
Ideal for chemical processing, pharmaceuticals, and OEM systems requiring high-purity, leak-free fluid transfer under pressure.
This close-coupled magnetic drive model features slotted bearings, hydraulic porting, and helical gears for quiet, efficient performance. It is ideal for OEM and industrial systems requiring contamination-free fluid handling.
Recommended Applications:
Ideal for chemical processing, pharmaceuticals, and OEM systems requiring high-purity, leak-free fluid transfer under pressure.
