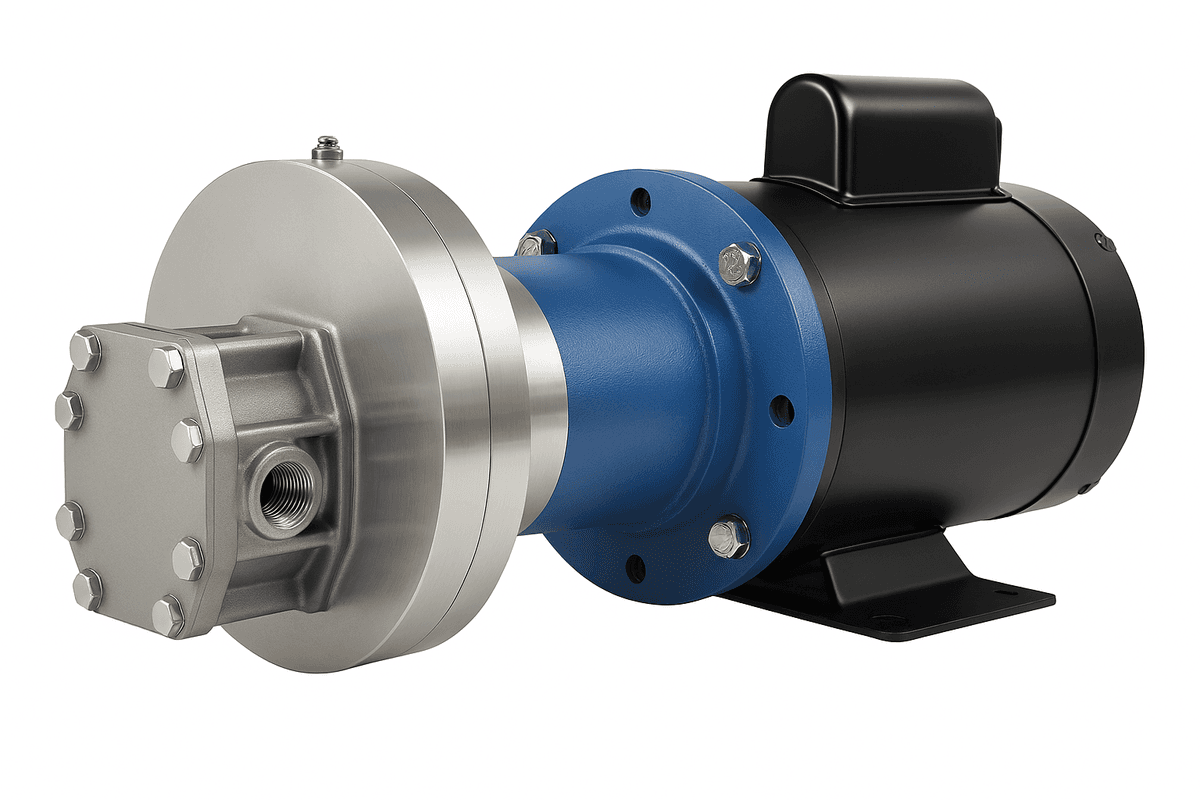

Chemsteel Gear Pump Mag C with Flanges Foot (No Motor) | SM946 | (OBSM94639JW-FFM2)
SKU: obsm94639jw-ffm2
SKU: obsm94639jw-ffm2
Key Features:
- Material: 316 Stainless Steel or Alloy C
- Port Size: 1½" FNPT or BSPT
- Flow Rate: Up to 30 GPM (113.6 LPM)
- Pressure: 110 PSI differential, 225 PSI system
- Temperature Range: -50°F to 450°F (-46°C to 232°C)
- Seal Type: Magnetic drive (seal-less)
- Bearings: Carbon or PTFE
- Mounting: Foot-mounted, motor-ready (no motor included)
Lead times temporarily extended to 12 weeks.
$52,056.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.The OBSM94639JW-FFM2 is a Chemsteel™ SM946 metallic gear pump with a seal-less magnetic drive, designed for high-capacity, leak-free transfer of corrosive and high-purity fluids. Featuring 1½" FNPT ports and a foot-mounted base (no motor), this pump delivers up to 30 GPM at 1750 RPM with a maximum differential pressure of 110 PSI.
Constructed from 316 stainless steel or Alloy C, the SM946 includes slotted bearings, hydraulic porting for axial thrust balance, and a rugged three-section housing with O-ring seals for long service life. It supports bi-directional flow and operates across a wide temperature range from -50°F to 450°F.
Recommended Applications:
Ideal for chemical processing, pharmaceuticals, and OEM systems requiring high-volume, contamination-free fluid transfer with magnetic drive reliability.
Constructed from 316 stainless steel or Alloy C, the SM946 includes slotted bearings, hydraulic porting for axial thrust balance, and a rugged three-section housing with O-ring seals for long service life. It supports bi-directional flow and operates across a wide temperature range from -50°F to 450°F.
Recommended Applications:
Ideal for chemical processing, pharmaceuticals, and OEM systems requiring high-volume, contamination-free fluid transfer with magnetic drive reliability.
